150l zinc coated color steel home solar power system

FOB Reference Price:Get Latest Price
$266.00 - $298.00 / Sets | 1 Set/Sets (Min. Order)
Heating System:
Batch / ICS (Passive)
Report Suspicious Activity
Quick Details
Evacuated Tube
Circulation Type:
Indirect / Closed Loop (Active)
Connection Type:
Housing Material:
Zinc Coated Color Steel
Place of Origin:
Zhejiang, China
Brand Name:
home solar power system
Model Number:
Galvanized steel stainless steel AL-alloy optional
Heat pipe condenser length:
70mm 90mm 150mm or customized depends on your requirement
Supply Ability
Supply Ability:
3000 Set/Sets per Month solar water heater
Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box.

 Product Description


Pressurized Solar Heater Details
Model: FD-IP-15



Pressurized solar heater features:

1.Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5.No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7.Dual-purpose brackets for both flat and inclined roof

8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out


PressurizedSolar Water Heater working principle:

1.The heat pipe pressurized solar heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.

2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot

3.No water in the heat pipe makes the whole system could bear pressure


Unique Design:
with ADJUSTABLE bracket (suitable for both flat roof and sloop roof),
new designed vacuum tube holder,
new design electric heater element cover.....
316L stainless steel socket.

Technical Parameters:

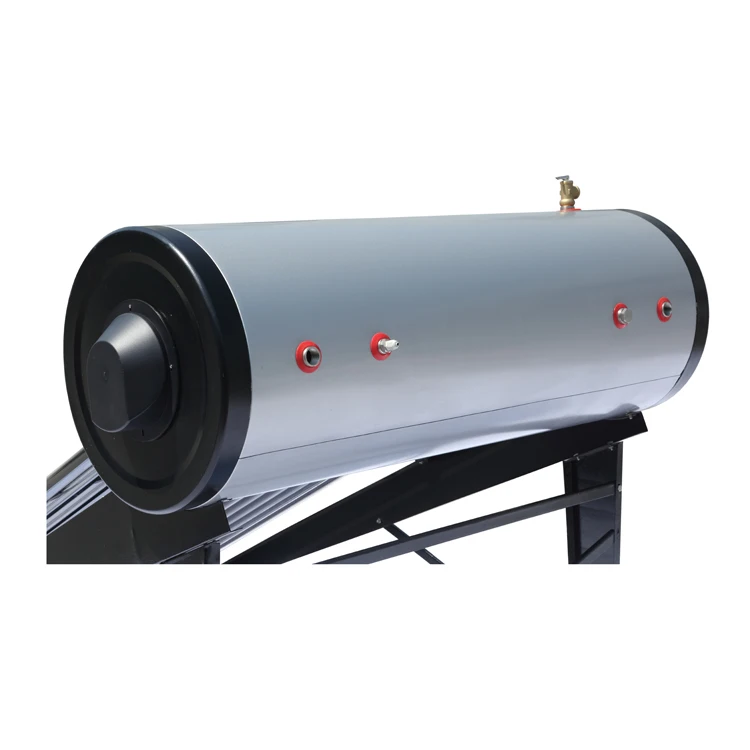

Water Tank
1. Inner tank material and thickness:stainless steel SUS304,1.2mm, dia.: 360mm
2. Outer tank material and thickness: 0.31mm,Zinc-coated galvanized steel, diameters : 470mm
3. Tube to tube distance : 75MM
4. Insulation layer material and thickness:high density polyurethane,55mm

Vacuum Tubes
1. Tube structure:All-glass double deck co-axial structure,. 58*1800mm, COPPER HEAT PIPE, 80MM condenser.
2. Glass material:Borosilicate 3.3 glass
3. Sediment method:Tri-element magnetron sputtering plating (COPPER red tube)
4. Hail resistance:25mm
5. Pressure-endure:0.7MPA.
6. Heat pipe pocket:316L.

Bracket Specification
1. Bracket material and thickness: STRONGER GALVANIZED STEEL 1.5mm thickness. ADJUSTABLE STAND FRAME
2. Bracket angle: 38~45 degree
3. Bracket bolts and nuts: stainless steel.
Hail resistance : 20-30mm
Temperature heat : 45-100 degree Celsius (BOILING POINT)
Heat preservation : 80 hours
