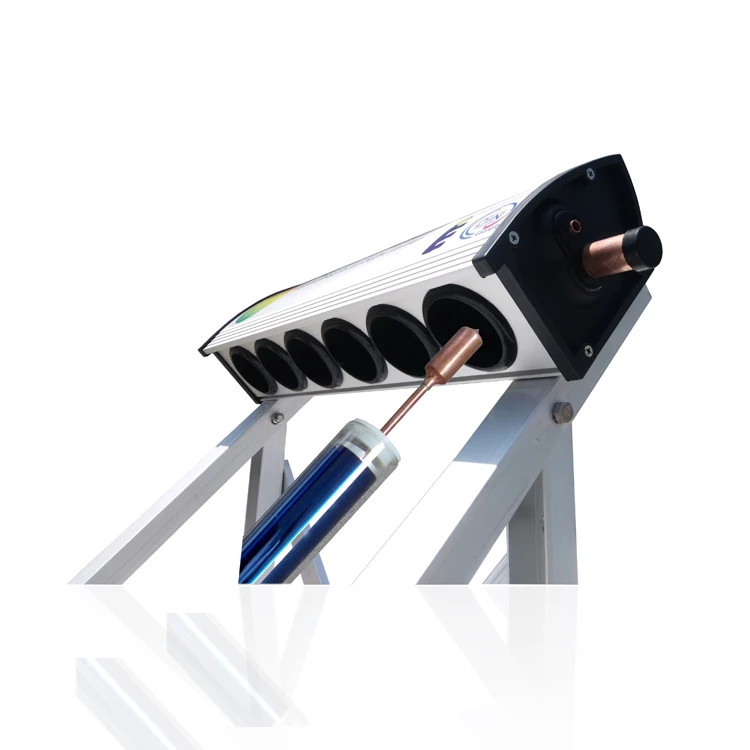

6 tubes mini solar collector (24mm condenser heat pipe type)

FOB Reference Price:Get Latest Price
US $66-88 / Sets | 50 Set/Sets LARGER QUANTITY,BETTER PRICE (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FADI or OEM solar collector
Model Number:
FD-SC--6-PRO
Type:
Manifold Collector
Application:
Solar Thermal
Pipe Material:
Copper
Heat pipe condenser:
24mm
Color:
Black silver grey milk white...
Manifold Insulation Material:
Patent Golden Colored High Density Rock Wool.
SupplyAbility
SupplyAbility:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Carton Box or Pallet
Port
SHANGHAI, NB,GZ,SZ
Lead Time :
within 13 working days

Evacuated Tube Solar Collector Details

Model:FD-SC-12



Evacuated Tube Solar Collector  working principle

1. The heat pipe series pressurized solar collector are always connected with existing heating supply device.

2. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminum fins.

3. The liquid in the heat pipe changes into vapour which rises to the condenser.

4. The heat then passes through the heat exchanger and the vapour becomes liquid, returning to the base of the heat pipe.

5. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe.

6. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.



solar collectors.jpg



Evacuated Tube Solar Collector  specification


1. Manifold (interior): 0.8mm thickness Red copper
2. Manifold (exterior): 2. Mm thickness Aluminum alloy
3. Glass tube dimensions: 58mm x 1.800mm / 47mm x 1.500mm
4. Insulation layer: 45mm thickness glass fiber/polyurethane layer
5. Heat preservation: 72-96hrs
6. Hail resistance: 25mm
7. Max pressure: 6 bar
8. Coating of vacuum tube: Ss-c/cu
9. Frame: 2.0mm thickness Aluminum Alloy

Evacuated Tube Solar Collector applications
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)





Fadi Solar business terms and conditions:

1.Warranty: 10years for complete solar wate heater

2.Delivery time:

   Sample order: 7-10days

   1-2 *40HQ: in 15days

   2-5 *40HQ: in 20day

3.Payment term: T/T,L/C,ESCROW,Paypal,E-credit line,Wstern union

4. Installation training and guidance for free(we have a very professional and experienced interational installation team)



solar collector.jpg

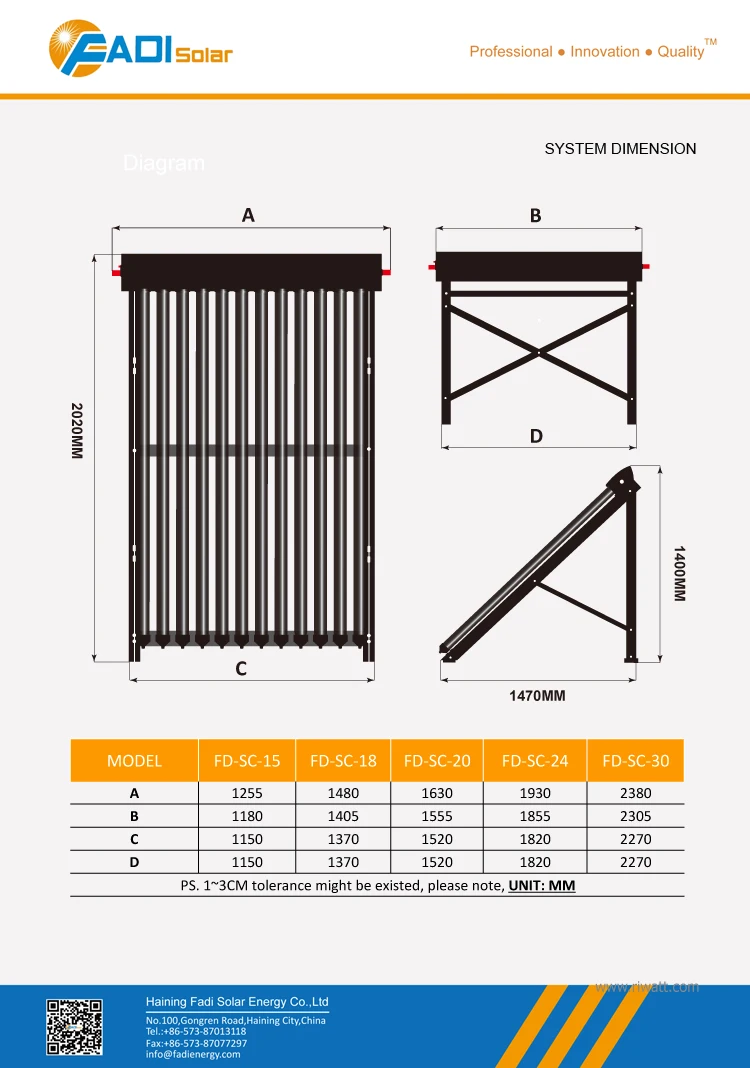

15 18 20 24 30 data.jpg

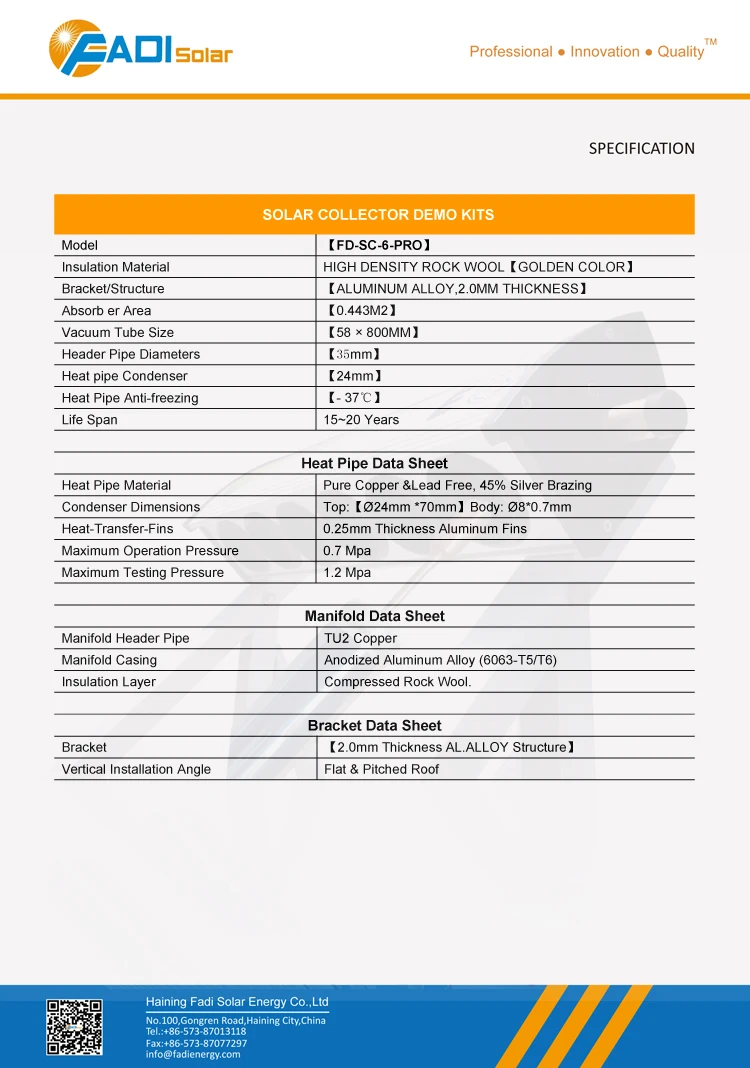

collector specification.jpg





750 HP COMPARISON.jpg

solar data sheet.jpgSOLAR COLLECTOR-NEW.jpg

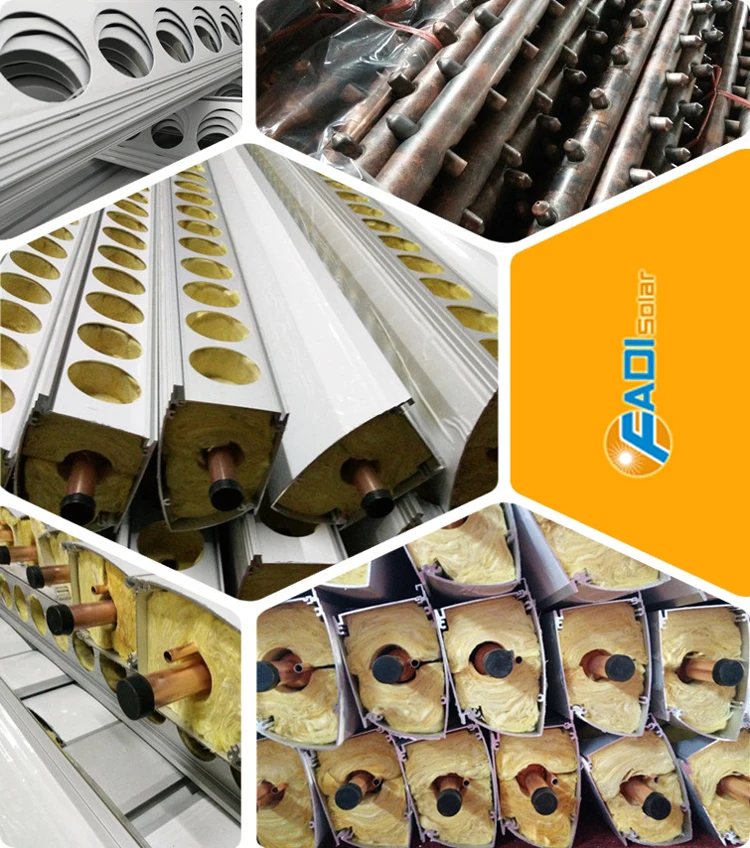

collector manifold.jpg

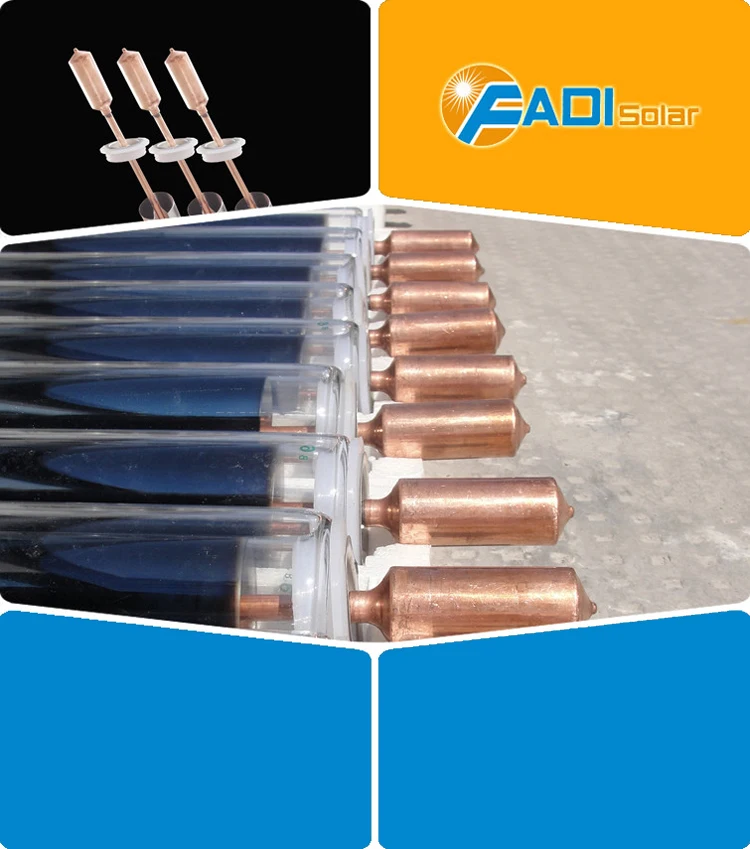

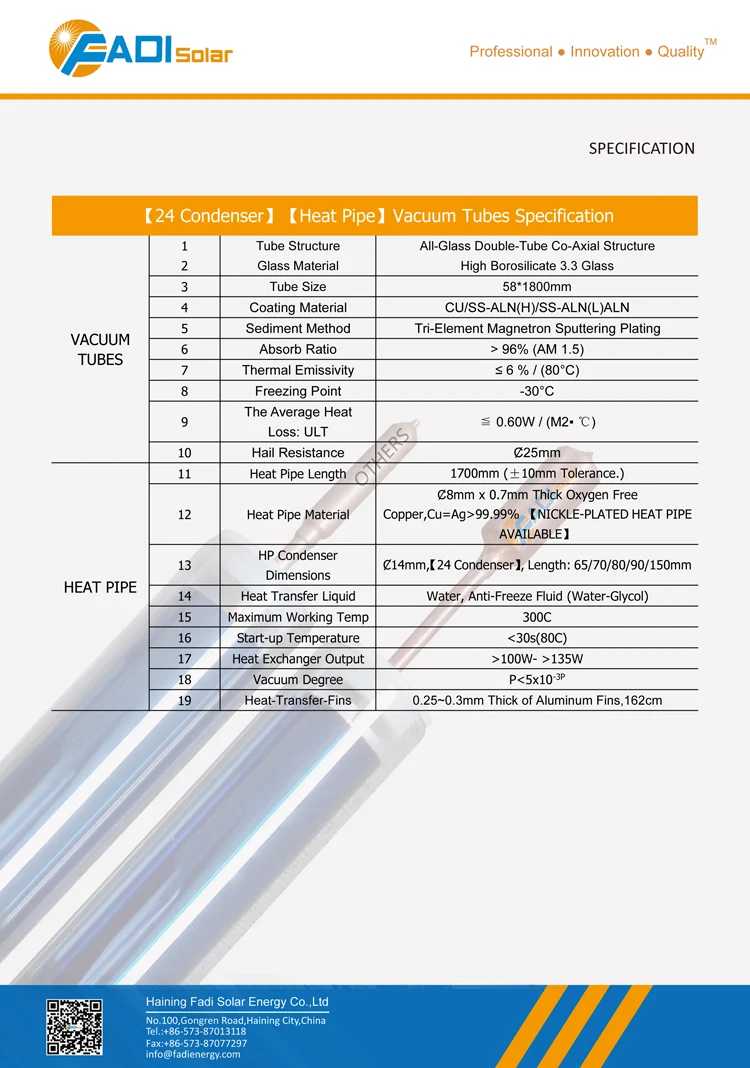

HEAT PIPE VACUUM TUBE_.jpg



hp solar collector.jpg



solar collector hp show 01.jpg

 your energy partner-Otto.jpg
