90w low pressurized space heating solar collector

FOB Reference Price:Get Latest Price
US $400-580 / Sets | 5 Set/Sets (Min. Order)
Type:
Manifold Collector
Application:
solar drying
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FADI OR OEM Solar Collector
Model Number:
58*1800mm
Pipe Material:
Glass
Air booster pump:
90W
Solar collector:
50 tubes (25+25) , Butterfly Type
Backing Up heat surce:
In-built electric heater
Solar collector stand frame:
Galvanized steel
Supply Ability
Supply Ability:
3000 Set/Sets per Month Solar Collector
Packaging & Delivery
Packaging Details
standard carton box with white foam
Port
SHANGHAI, NINGBO, GUANGZHOU

Space HeatingSolar Collector Introduction:


Supplement your heating requirements by simply using the energy from the sun. Solar Air Collectors provide you with free, clean energy and have no operation costs.
Solar Hot Air Collectors are eco-friendly and cost-effective.
There are no operation costs!

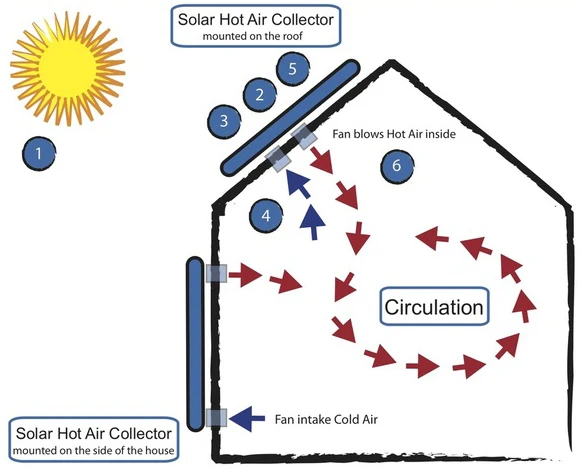

Space HeatingSolar Collector - How it works

1. The sun creates energy that is used to produce heat in the solar hot air collector.
2. The surface of the absorber gradually heats up as the sun hits the collector.
3. Simultaneously, the sun creates energy to the solar panel used to power the circulation fan.
4. Once the circulation fan comes on, cold air is then drawn from the house and enters the inlet of the collector.
5. This cold air gets heated as it passes behind the absorber.
6. The heated air is then pushed back into the home.








Space HeatingSolar CollectorBenefits:


* Eco-friendly
* Cost-effective
* Self-sufficient
* No electrical wiring necessary
* Minimal Maintenance
* No operation costs

Cost-effective

FADI Solar Hot Air Collectors are completely self-sufficient. They do not require any electrical wiring and require minimal maintenance.
Solar Hot Air Collectors will supplement your current heating system and reduce your heating costs substantially. At the same time, there are no operation costs.
Solar Hot Air Collectors use the power of the sun to generate heat. A solar powered fan is used to distribute the hot air into the desired area.


Eco-friendly

FADI Solar Hot Air Collectors produce zero emissions and can reduce tons of carbon emissions annually.
If you have further questions, please do not hesitate to call us today. FADI offer FREE consultations and we are more than happy to answer all of your questions or concerns.



FADI Space HeatingSolar Collector  Widly use for food drying with affordable price and durable price.

For Example, in Haining , China,

1 set solar collector of 50 tubes solar air collector, can meet requirement for 20 square meters regular house,

with average output ± 50~70 degree,

This Space HeatingSolar Collector is very useful for drying, warming, such as drying food, drying tabacoo,dring for pickled food....
In winter, can warm the class room for children in daytime....

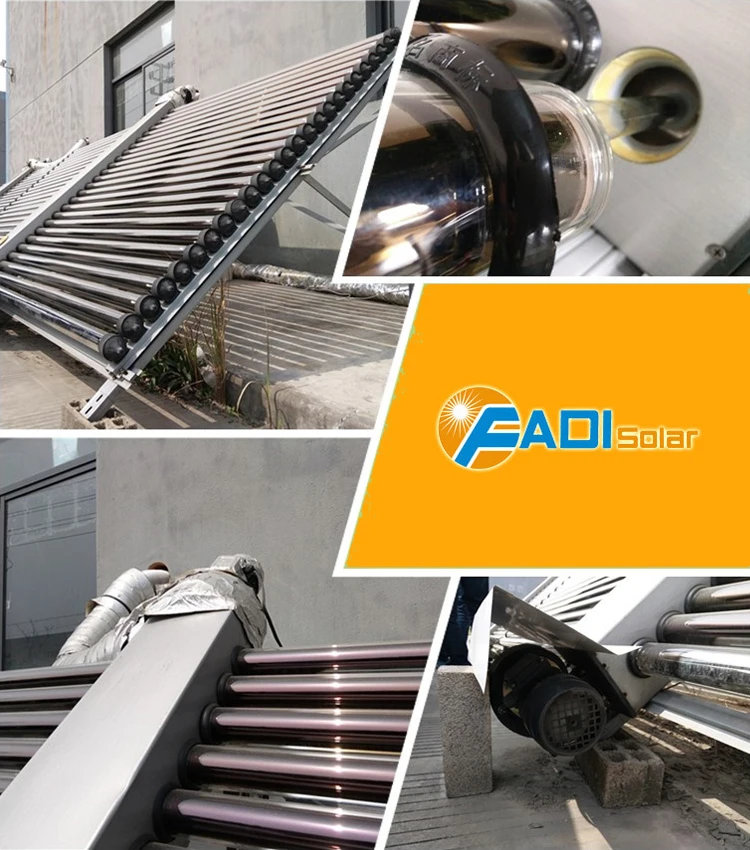

Space HeatingSolar CollectorSystem Composition:

1.  50 tubes solar collector
2.  1 pcs 90W air boost pump
3.  Bracket: galvanized steel type
4.  Vacuum tube : 58*1800mm solar collectors with reflector mirror inside the vacuum tubes. efficiency is better,
5.  There is TWO inner chest inside the solar collector manifold, one for cold air, another: hot air.6.
6.  There is a glass tube(± 1500mm)inside each vacuum tubes.
7.  A simple/portable controller panel,
