Highly efficient swimming pool solar water heater

FOB Reference Price:Get Latest Price
$899.00 - $1,196.00 / Sets | 1 Set/Sets (Min. Order)
Pressure:
Pressurized
Heating System:
Thermosyphon (Passive)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Circulation Type:
Indirect / Closed Loop (Active)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Color Steel
Certification:
CE, SRCC,Keymark
Capacity:
300
Place of Origin:
Zhejiang, China
Brand Name:
solar water heater,OEM,FADI
Model Number:
FD-SP2-300L
colour:
silver grey
Heat pipe condenser size:
Dia:24mm,14mm; Lenth:7cm
Heat pipe thickness:
0.6mm,0.7mm
Working station voltage:
220V,110V
Working station:
SP106 SP116 SP328 SR962
Supply Ability
Supply Ability:
1000 Set/Sets per Month swimming pool solar water heater
Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box
Port
SHANGHAI,NB

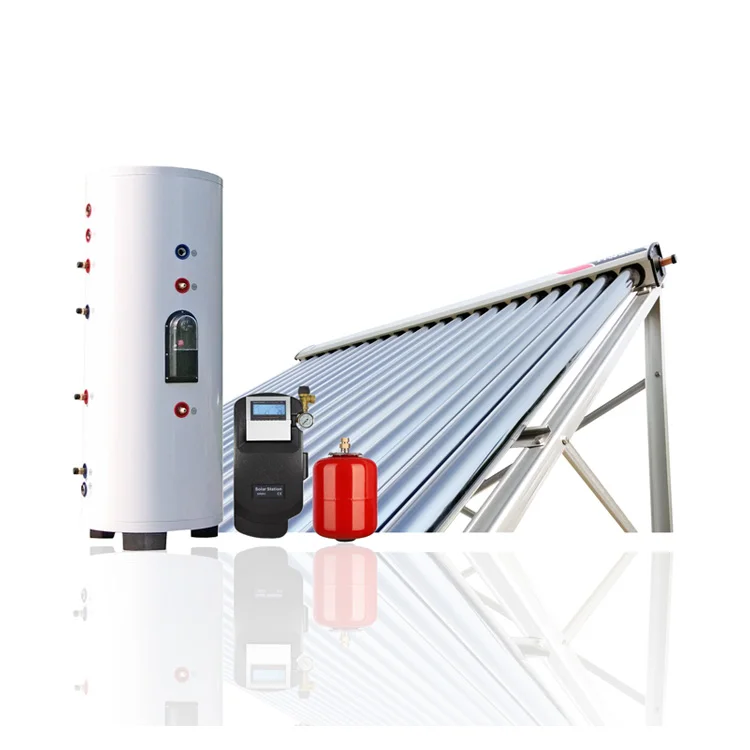

300LSolar Water Heater
Model: FD-SP300L

300L Solar water heater features
1. The upright tank can make the water temperature to a high level. It can hot the water instantly
2. The tank inside the building, the hot water loses less energy than the normal one
3. The solar collector and the tank of solar water heater is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming


Solar water heater working principle:
1. The solar collector absorbs solar energy and transmits it to the solar water heater tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and heat pipe solar water heaters tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically

Solar water heater working station component:
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel


Solar water heaters specification:
Benefits of this kind of solar water heater:
1. Prolong the life of your existing water heater

2.Costs less than an electric, gas or oil water heater

3.No maintenance required

4.Lasts longer than a traditional hot water heater

5.Reduce your water heating costs

6.Reduce your carbon footprint
