24 Tubes 230L Stainless Steel Heat Pipe Solar Hot Water Heater

FOB Reference Price:Get Latest Price
US $406-468 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
6000 Set/Sets per Month
Port:
Shanghai,Ningbo Sea-port
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Color Steel
Certification:
CE, ISO9001
Capacity:
230
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FADI OR OEM Solar Hot Water Heater
Model Number:
FD-SIP-500-58-24-230L
Product Name:
Solar Hot Water Heater
Heat Pipe Sleeve:
316L stainless steel
Heat pipe condenser length:
80mm
Bracket:
Never rust aluminum alloy
Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box
Delivery Time
6-10days

Solar  Heater Details:
Model: FD-SIP-500-58-24-230L



SSolar Hot Water Heater Features

1.Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized water tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5.No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7.Dual-purpose brackets for both flat and inclined roof

8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out

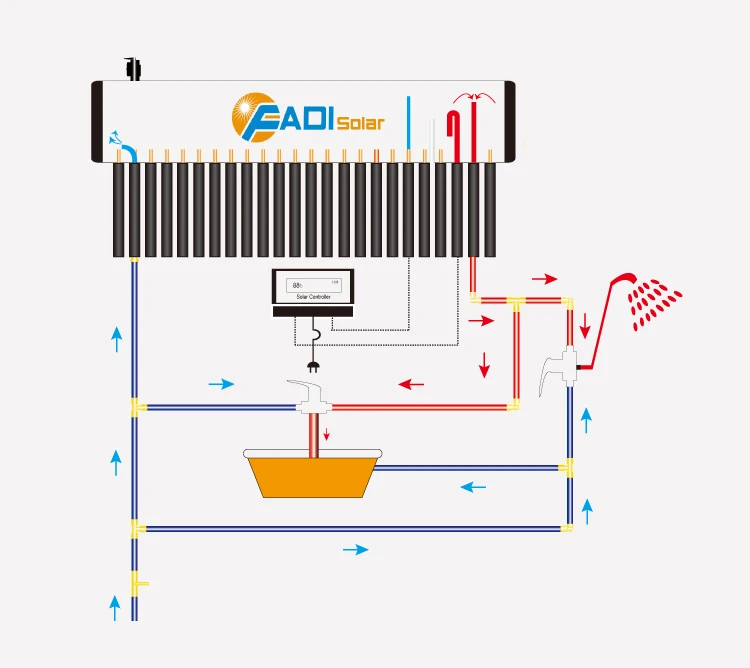

Solar Hot Water Heater Working Principle



1.The pressurized water tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.

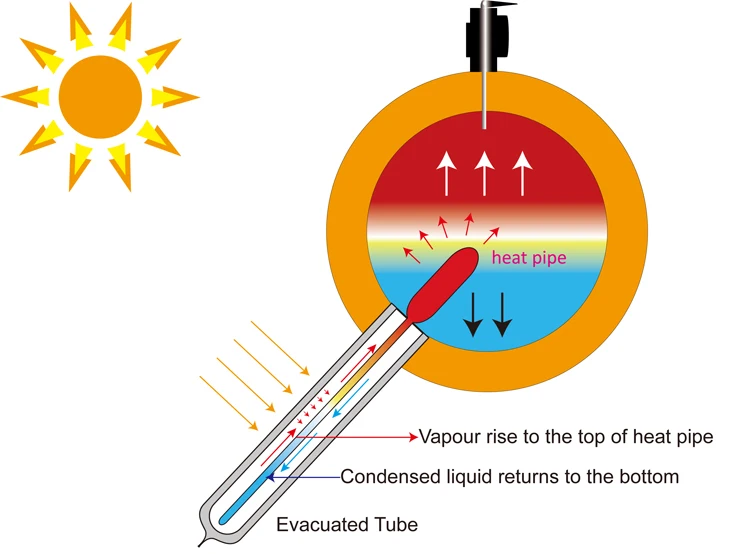

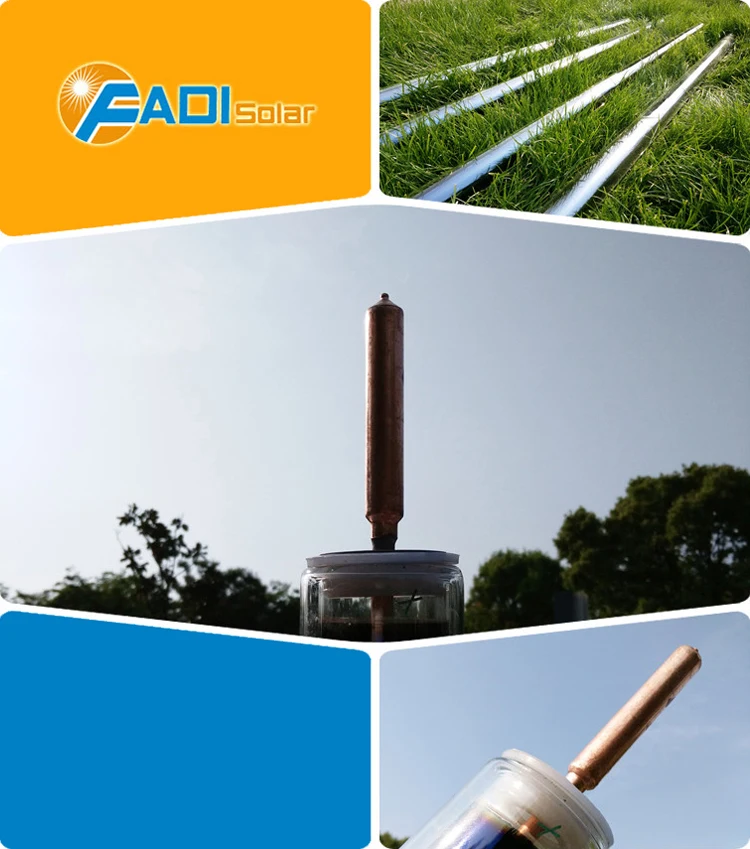

2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized water tank. In this case, the water inside the tank becomes hot

3.No water in the heat pipe makes the whole system could bear pressure

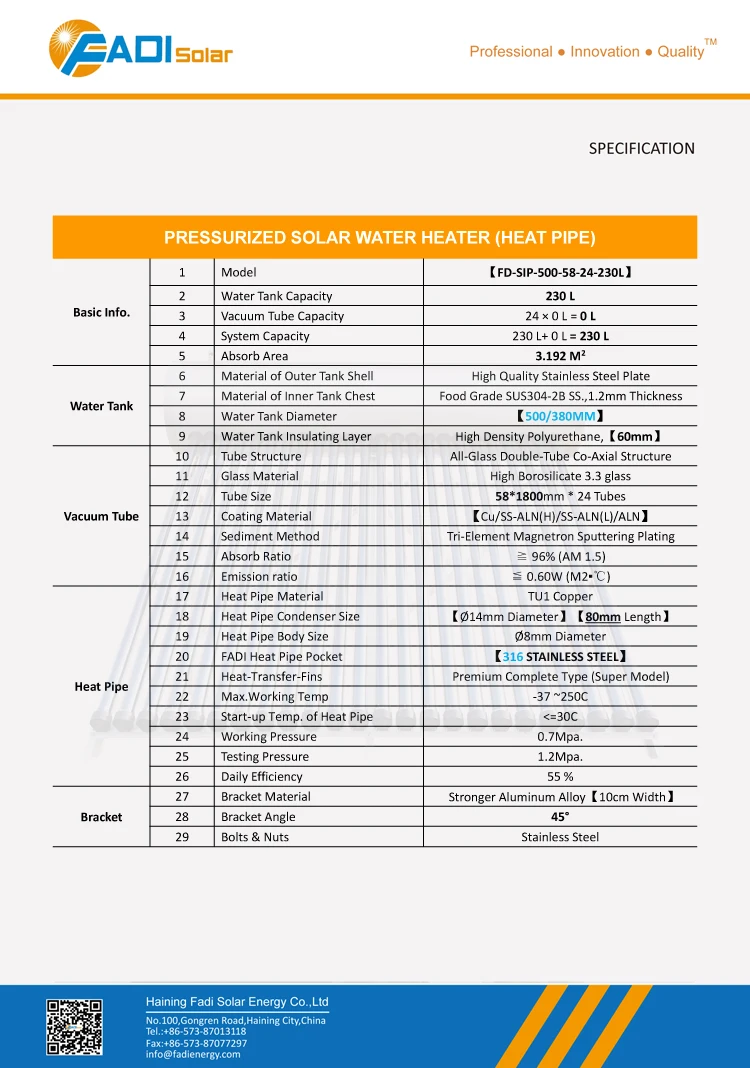

Description

24 tubes 230L Solar Heater

Material of out tank

0.31-0.4mm thickness stainless steel

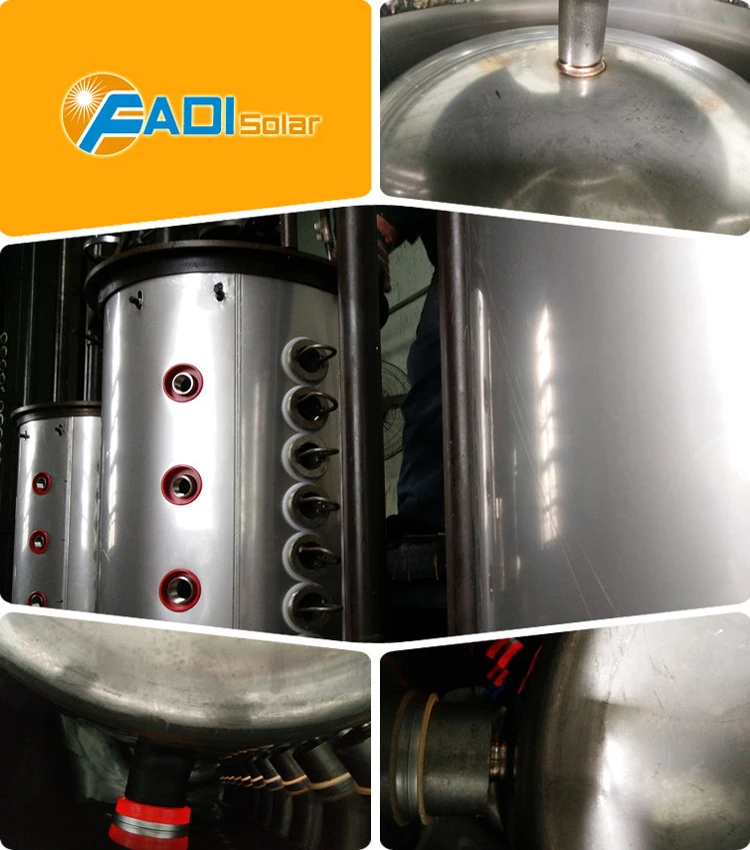

Material of inner tank

Food grade 1.2-2.0 mm thickness SUS304 stainless steel

Tank insulating layer

55mm 45kg/m³ high-density polyurethane foamed

Inlet and outlet hole

Male G 1/2, 3/4

Max pressure

0.6Mpa

Solar collector tube

3.3 Borosilicate glass with three target absorber coating

Thickness of glass tube

1.6mm

Vacuum tube tightness

P≤0.005 Pa

Absorption

as=0.93-0.96(AM1.5)

Emission ratio

εh=0.04-0.06(80C±5C)

Idle sunning property parameters

Y=220~260m2.C/KW

Average heat loss coefficient

ULT=0.6~0.7W/(m2.C)

Bracket:

2.0mm thickness,10cm width, never rust al.alloy stand frame.

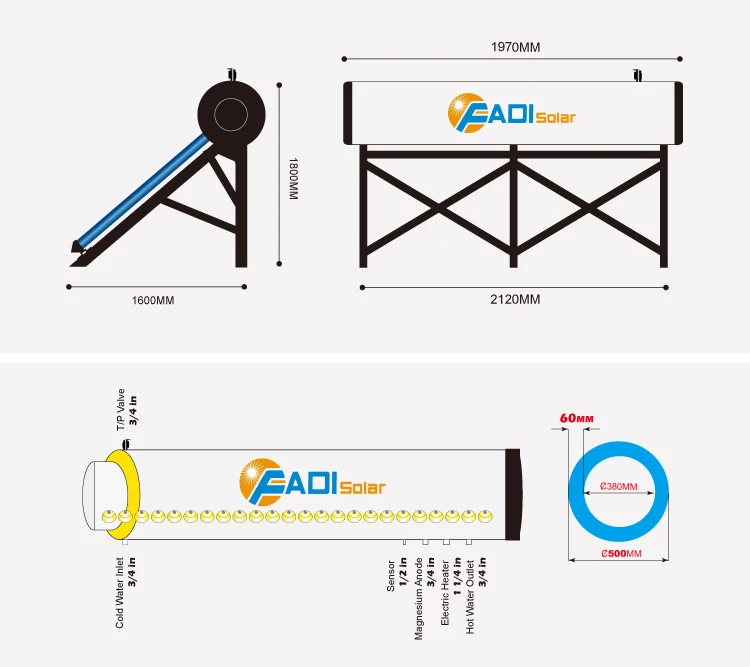

Structure of tank:

5 holes for air vent,water inlet and outlet,electric heater,Mag Rod

Welding:

Argon arc welding

Fastening pieces:

Made of stainless steel screw

Absorber area

3.192 m²

Tube quantity

24 tube,58x1,800mm with heat pipe

Tank capacity

230L
