Quick Details

  • Type: Evacuated Tube
  • Pressure: Pressurized
  • Circulation Type: Indirect / Closed Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Split
  • Installation: Freestanding
  • Housing Material: Color Steel
  • Certification: CE, SRCC,Keymark
  • Capacity: 200
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: solar water heater,OEM,FADI
  • Model Number: FD-SP2-200
  • colour: silver grey
  • Heat pipe condenser size: Dia:14mm,14mm; Lenth:7cm
  • Heat pipe thickness: 0.6mm,0.7mm
  • Working station voltage: 220V,110V
  • Working station: SP106 SP116 SP328 SR962

Packaging & Delivery

Packaging Details: Standard export carton with foam or wooden box
Delivery Detail: Shipped in 7 days after payment
Solar Water Heaters
Model: FD-SP2-200


Solar water heaters features
1. The upright tank can make the water temperature to a high level. It can hot the water instantly
2. The tank inside the building, the hot water loses less energy than the normal one
3. The solar collector and the tank of solar water heater is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming

Solar water heaters working principle
1. The solar collector absorbs solar energy and transmits it to the solar water heater tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and heat pipe solar water heaters tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically

Solar water heaters working station component:
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel

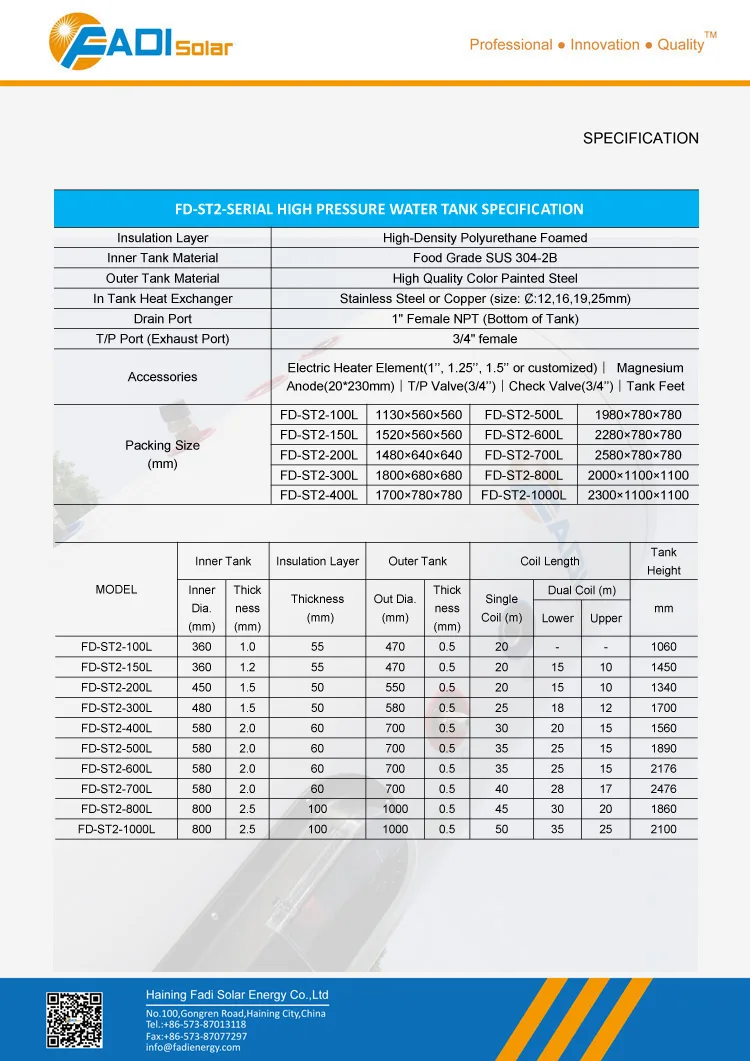

Solar water heaters specification:
Description
solar water heaters
Material of out manifold
0.55mm thickness color steel/ fluorine carbon steel
Material of inner tank
Food grade 2.0 mm thickness SUS304 stainless steel
Tank insulating layer
40mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole
Male G1''
Max pressure
0.6 Mpa
Solar collector tube
3.3 Borosilicate glass with N/Al coating
Thickness of glass tube
1.6mm
Vacuum tube tightness
P≤0.005 Pa
Absorption
as=0.93-0.96 (AM1.5)
Emission ratio
εh=0.04-0.06 (80C±5C)
Idle sunning property parameters
Y=220~260m2.C/KW
Average heat loss coefficient
ULT=0.6~0.7W/(m2.C)
Bracket:
2.0mm thickness aluminum alloy
Tank weight
51KGS
Tank size
550mm Dia x 1340mm Height
Tank capacity
200L
Solar collector
1pcs  58x1800x20tube solar collector
Absorber area
1.874 m²
Working station
SP116 working station
Heat exchanger length
Upper:12m,      Underside:18m

Benefits of this kind of solar water heaters:
1. Prolong the life of your existing water heater

2.Costs less than an electric, gas or oil water heater

3.No maintenance required

4.Lasts longer than a traditional hot water heater

5.Reduce your water heating costs

6.Reduce your carbon footprint



Installation instruction of FD-SP2-300L:











Certificates of Solar System:

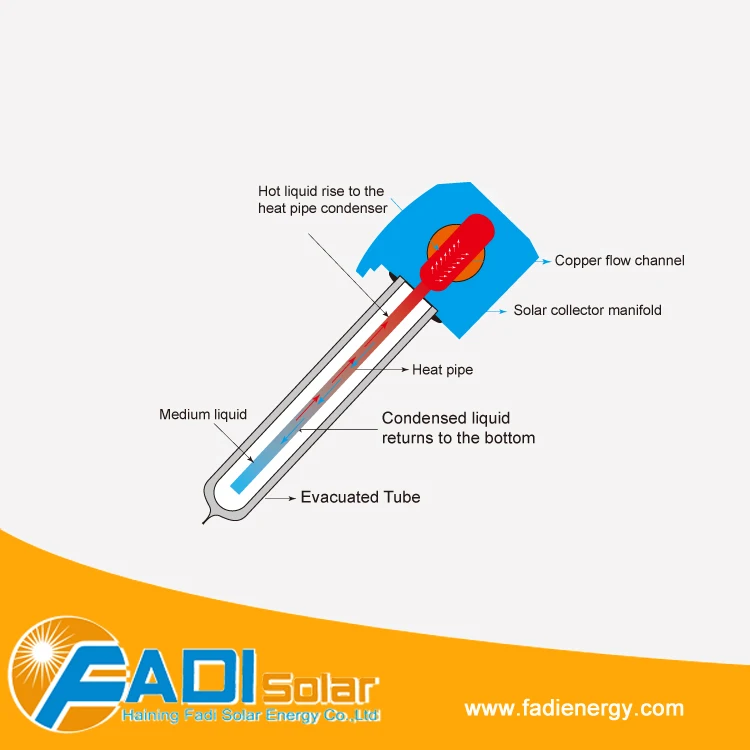

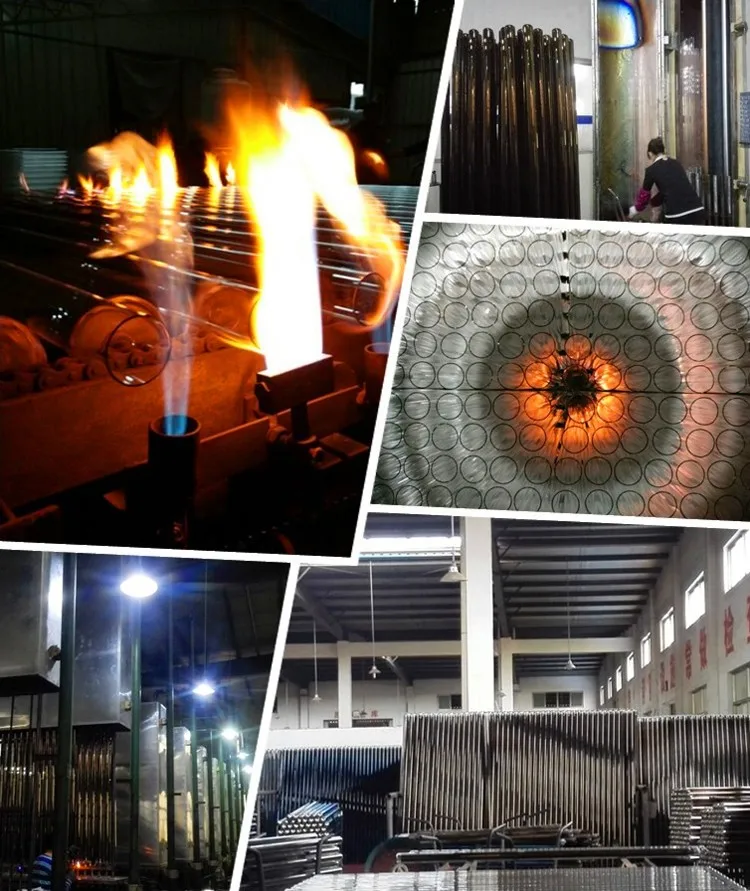

Heat Pipe Vacuum Tube:

Solar Collector Manifold:
