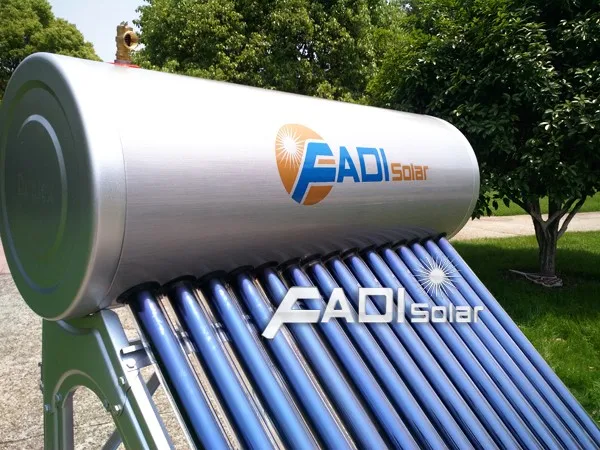

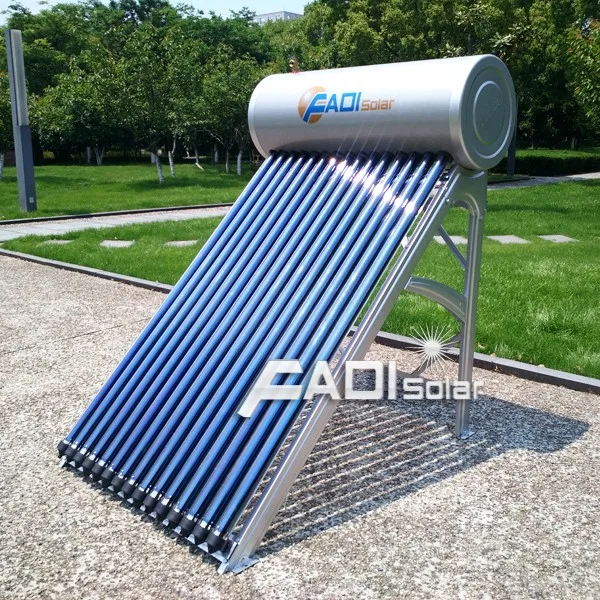

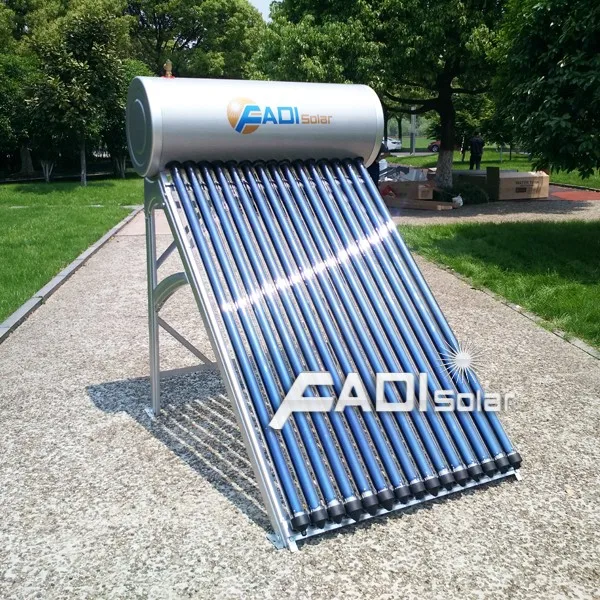

Zinc coated color steel pressurized water heater solar

FOB Reference Price:Get Latest Price
US $311-350 / Sets | 1 Set/Sets water heater solar (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Batch / ICS (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Zinc Coated Color Steel
Certification:
CE
Capacity:
150
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FADI or OEM solar water heater
Model Number:
FD-IP-15-PRO
Bracket:
Galvanized steel stainless steel AL-alloy optional
Heat pipe condenser length:
70mm 90mm 150mm or customized depends on your requirement
Supply Ability
Supply Ability:
3000 Set/Sets per Month water heater solar
Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box.
Port
SHANGHAI
Lead Time :
Shipped in 10 days after payment

Water Heater Solar Details
Model: FD-IP-15



Water heater solar features:

1.Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5.No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7.Dual-purpose brackets for both flat and inclined roof

8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out



Water heater solar working principle:

1.The solar heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.

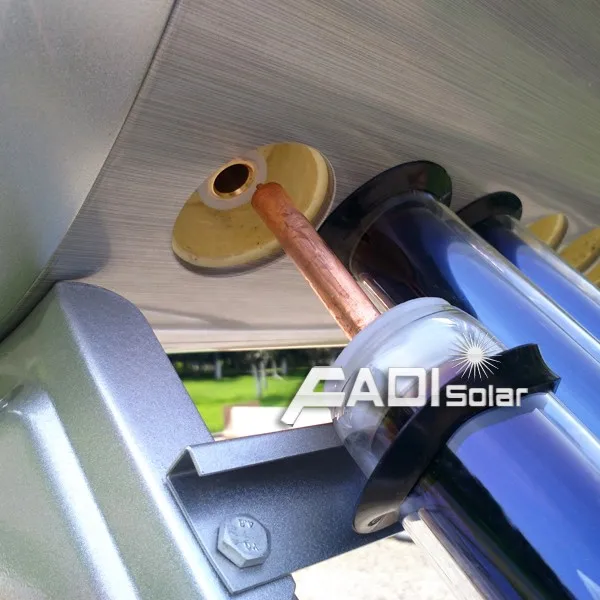

2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot

3.No water in the heat pipe makes the whole system could bear pressure



Description

Water Heater

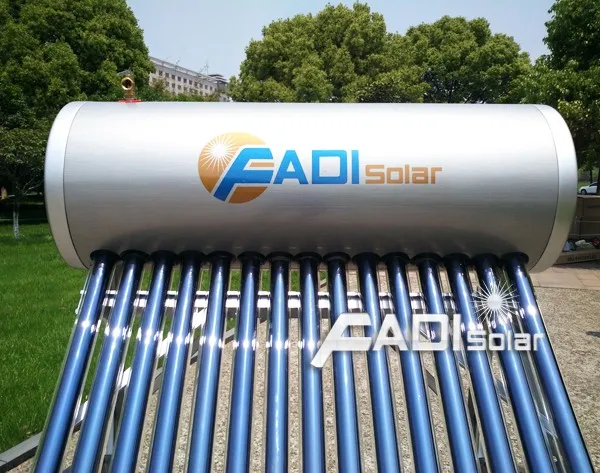

Material of out tank

0.4mm thickness color steel/ fluorine carbon steel

Material of inner tank

Food grade 1.2-2.0 mm thickness SUS304 stainless steel

Tank insulating layer

55mm 45kg/m³ high-density polyurethane foamed

Inlet and outlet hole

Male G 1/2, 3/4

Max pressure

0.6Mpa

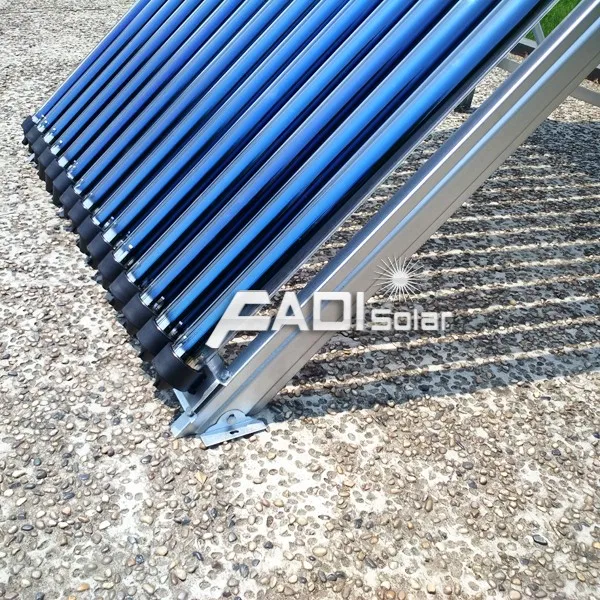

Solar collector tube

3.3 Borosilicate glass with N/Al coating

Thickness of glass tube

1.6mm

Vacuum tube tightness

P≤0.005 Pa

Absorption

as=0.93-0.96(AM1.5)

Emission ratio

εh=0.04-0.06(80C±5C)

Idle sunning property parameters

Y=220~260m2.C/KW

Average heat loss coefficient

ULT=0.6~0.7W/(m2.C)

Bracket:

1.5mm thickness Galvanized Steel

Structure of tank:

5 holes for air vent,water inlet and outlet,electric heater,mag rod.

Welding:

Argon arc welding

Fastening pieces:

Made of stainless steel screw

Absorber area

1.995m²

Tube quantity

15tube  58x1,800mm with heat pipe

Tank capacity

135L
