Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Solar Panel System,FADI,OEM
  • Model Number: FD-OFF/PSS-9KW
  • Specification: Normal
  • Application: Industrial
  • Output Voltage (V): AC220V
  • Load Power (W): 9KW
  • Solar Power (W): 9KW
  • Work Time (h): 48hours
  • Solar Power: 9KW,220V

Packaging & Delivery

Packaging Details: Standard Export Packing
Delivery Detail: Shipped in 10 days after payment

Solar Panel System

Model: FD-OFF/PSS-9KW





Solar Panel System  :

1. This is an off-grid energy system which uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power.

2. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply.

3. Meanwhile, the system can charge the batteries with grid power until batteries are fully charged. Then the system will switch back to battery power supply





Solar Panel System feature:
1.Off-Grid Solar Enery System is composed of solar panels, controller, inverter, battery bank, solar panel mounting racks, and other accessories required for a complete system.
2.The solar panels generate electricity at daytime and charge the battery bank through the controller.
3.The battery bank gives a stable power output to the inverter which converts DC to AC to power loads, and provides power backup in rainy or cloudy days.
4.The controller gives an intelligent control of whole system process and provides various protections.



 Solar generator system applications:

1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, venue, stadium and so on

4. Power station, field operation and some huge engineer construction



Solar Panel System details:

Item NoFD-OFF/PSS-9KW
System Basic Information
Solar Panel Rated Output Power:9KW
Suitable for Max Daily Power Consumption:36KWH
Rated Output AC Capacity:9KW
Solar Panel
TypePoly Crystalline Silicon PV Module
Max Power:250W*36pcs
Vmp:30.6V
Size:1637×992×40mm
Weight:18.5kg/pc
25 years power output guarantee
(Note: 18pcs panels in series as a string, 2 strings in parallel)
Inverter (UPS type)
Input voltage9KW,DC220V
Output voltageAC220V  2-phase
TypeOff grid type, automatic power tracking,
efficiency97%
Warranty5years
Solar Controller
Solar power support 9KW
Voltage220V
Current50A
TypeMPPT charging controller, LCD display
Warranty5years
Battery
Battery capacity30pcs*12V/200AH per piece Gel Deep Recycle Battery
Solar panel rack
Ground or flat type mounting rack, including complete fittings; galvanized steel material
(Other types of racks can be customized as per client's requirement)
Cables10mm2 size cable
CertificationsCE RoHS

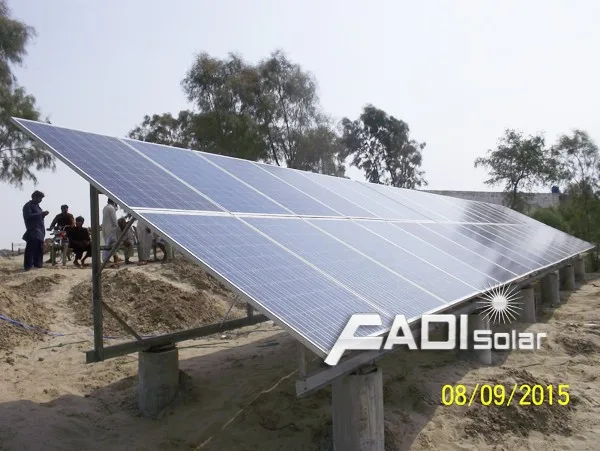

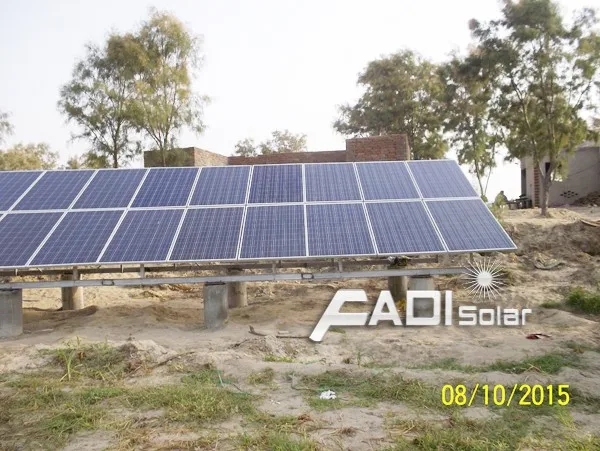

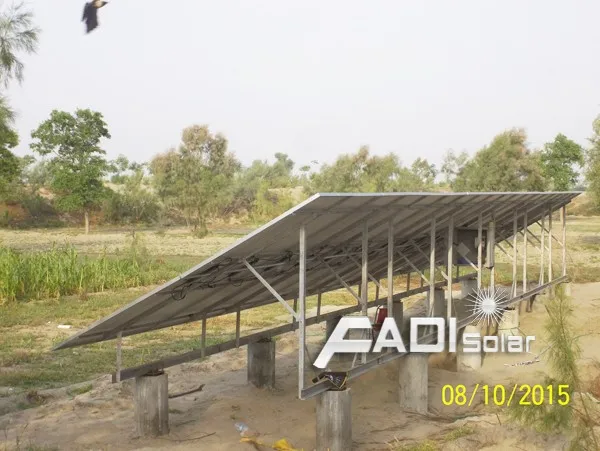

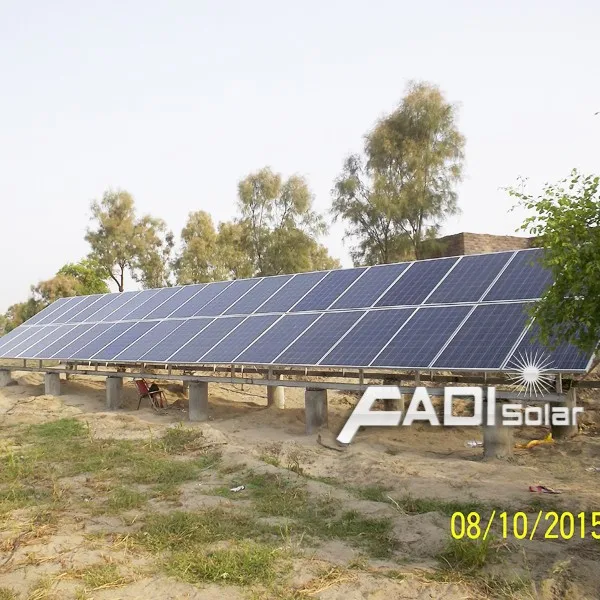

Our solar generator system production line:
