Quick Details

  • Type: Evacuated Tube
  • Pressure: Unpressurized
  • Circulation Type: Direct / Open Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: Color Steel
  • Certification: CE, ISO9001
  • Capacity: 150
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: solar water heater price,OEM,FADI
  • Model Number: FD-NP58-18D
  • Frame: 1.5mm thickness galvanized steel
  • Usage: 4-5person shower
  • Warranty: 10years
  • Quailty grade: A grade
  • Spare parts: electric heater,mag anode and controller for optional

Packaging & Delivery

Packaging Details Standard export carton with foam or wooden box
Delivery Time 6-10days

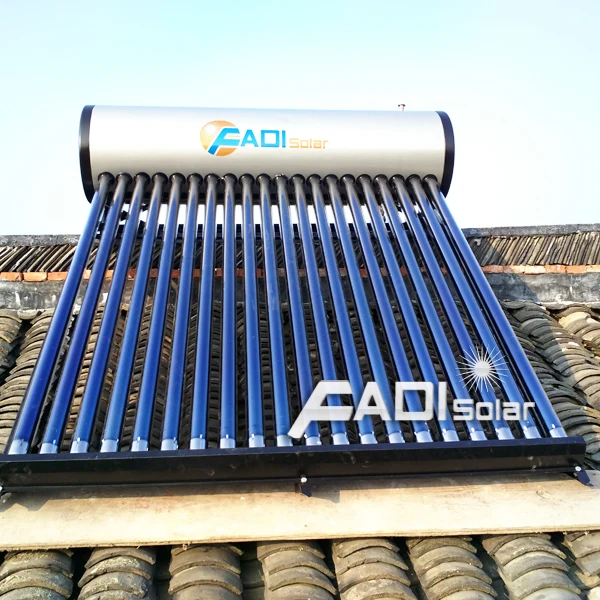

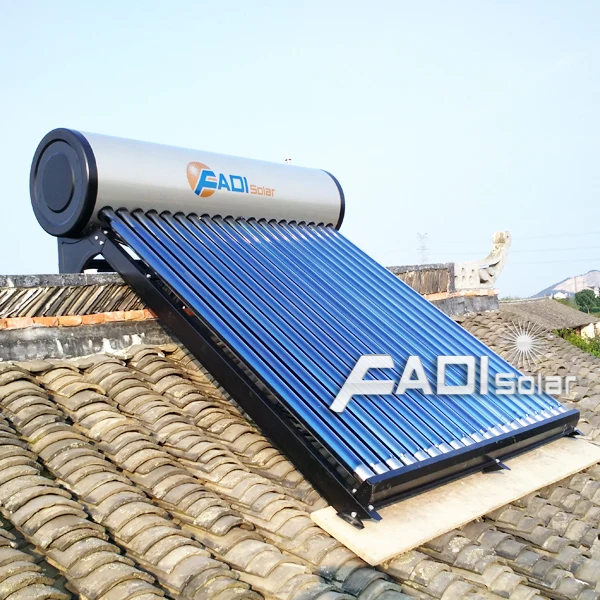

China Solar water heater price details:
Model: FD-NP58-18D

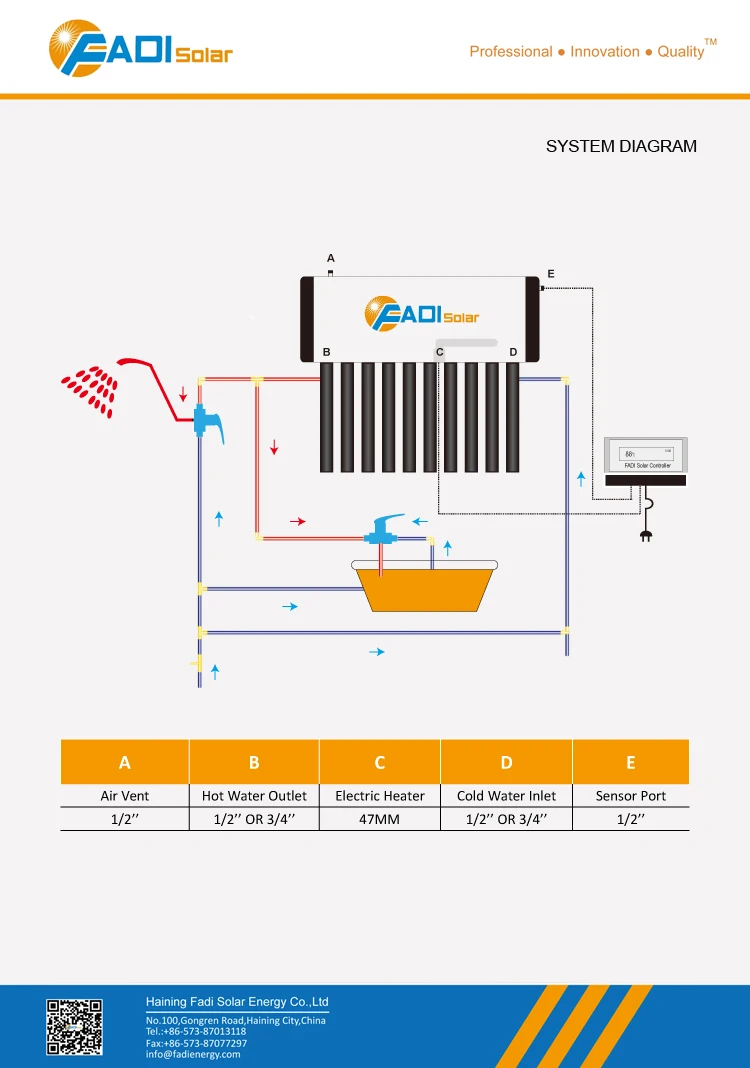

HowChina solar water heater price works:
1. Solar water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes
4. Through this circulation, the cold water in the water tank will be gradually heated.



China Solar water heater price features:
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

Solar water heater price optional accessories:
1. Assistant tank: 3/5/8/10/12/15/20L
2. Controller
3. Electrical heater: 1.5/2/2.5kw

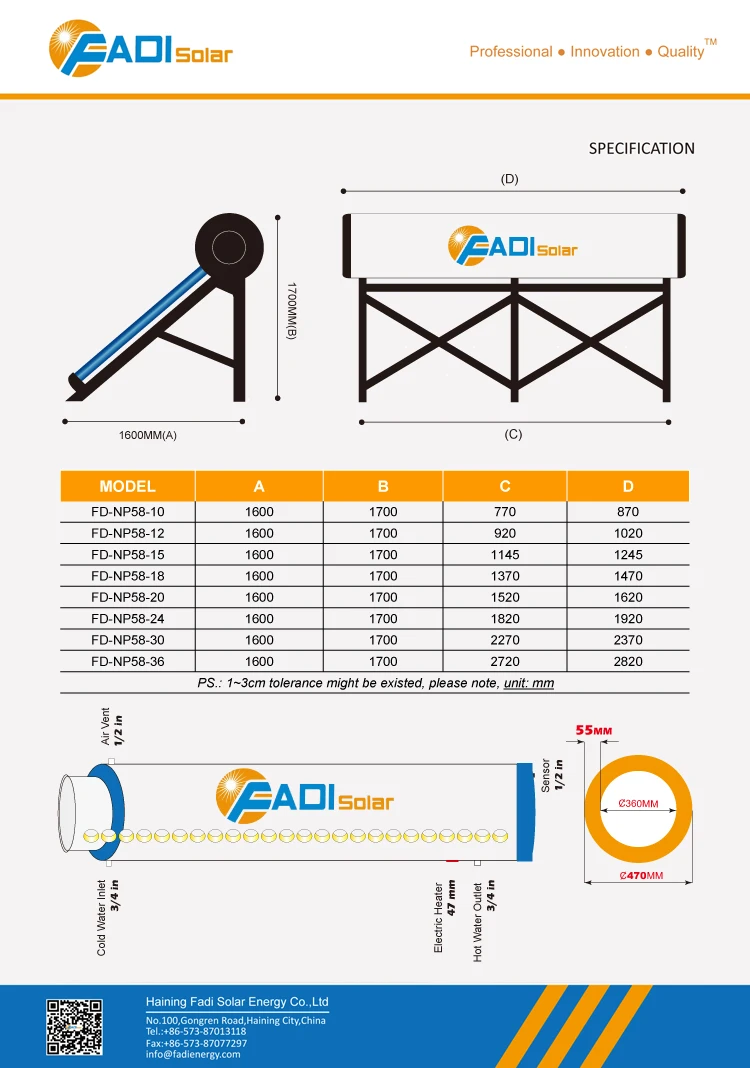

Hot water heater specification

Description

Hot water heater

Material of out tank

0.4mm thickness color steel/ fluorine carbon steel

Material of inner tank

Food grade 0.31-0.4mm thickness SUS304 stainless steel

Tank insulating layer

55mm 45kg/m³ high-density polyurethane foamed

Inlet and outlet hole

Male G 1/2, 3/4

Max pressure

0.05 Mpa

Solar collector tube

3.3 Borosilicate glass with THREE TARGET ABSORBER  coating

Thickness of glass tube

1.6mm

Vacuum tube tightness

P≤0.005 Pa

Absorption

as=0.93-0.96(AM1.5)

Emission ratio

εh=0.04-0.06(80C±5C)

Idle sunning property parameters

Y=220~260m2.C/KW

Average heat loss coefficient

ULT=0.6~0.7W/(m2.C)

Bracket:

1.5mm thickness Galvanized Steel

Structure of tank:

4 holes for air vent,overflow,water inlet and outlet,electric heater

Welding:

Argon arc welding

Fastening pieces:

Made of stainless steel screw

Absorber area

1.875 m²

Tube quantity

18tube  58x1,800mm

Tank capacity

150L



























Company Information

Professional • Innovation • Quality - Haining Fadi Solar Energy Co., Ltd's is one of the most professional manufacturers producing
energy conservation and environment-friendly products, such as solar water heater, solar collectors, solar panel etc. Through several years' development, Fadi has been the outstanding one in the solar energy industry.
As a professional solar water heater manufacturer ,Haining Fadi Solar Energy Co,.Ltd aims at "Creating the Number 1 Brand".
With this vision, we have been providing the most cost-effective solar thermal products and best services to our business partner since 2009!

Our Services




1.Quality Assurance
All our products are strictly manufactured in accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspection department of the manufacturing plant.



2.Product Customization Service

Our company can supply both standard and non-standard products to meet your various needs. We can customized products according to your drawings.



3.Providing Classification Society Certificates
We can supply various certificates of Classification Societies: CE, SRCC, SOLAR KEYMARK ,ISO.SGS....etc..



4.Excellent Pre-sale and After-sale Service
Our salesmen are adhering to the trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.





FAQ



1.Is sample order acceptable?
Yes,it is OK.



2.How to place the order?
You can send us email or inquiry on Alibaba directly.



3.How many days for delivery?
Basically,10~13 working daqys for builk order, for sample orders, 10 days.



4.How to make the payment?
We accept Bank T/T,Western Union,or L/C.



5.How will make the shipment?
A.Sea shipment by standard carton packing or pallet packing.
B.Air
C.Express service.
