Color steel ce certification automatic hot water heater

FOB Reference Price:Get Latest Price
US $120-139 / Sets | 1 Set/Sets PCS (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Color Steel
Certification:
CE, ISO9001
Capacity:
150
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
hot water heater,OEM,FADI
Model Number:
FD-NAL58-18
Frame:
1.5mm thickness galvanized steel
Usage:
4-5person shower
Warranty:
10years
Quailty grade:
A grade
Spare parts:
electric heater,mag anode and controller for optional
Supply Ability
Supply Ability:
6000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box
Port
NINGBO/SHANGHAI
Lead Time :
6-10days

Hot water heater details:

Model: FD-NAL58-18

How hot water heater works:
1. Hot water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes
4. Through this circulation, the cold water in the water tank will be gradually heated.



 Hot water heater features:
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

Hot water heater optional accessories:
1. Assistant tank: 3/5/8/10/12/15/20L
2. Controller
3. Electrical heater: 1.5/2/2.5kw



Hot water heater specification

Description

Hot water heater

Material of out tank

0.4mm thickness color steel/ fluorine carbon steel

Material of inner tank

Food grade 0.31-0.4mm thickness SUS304 stainless steel

Tank insulating layer

55mm 45kg/m³ high-density polyurethane foamed

Inlet and outlet hole

Male G 1/2, 3/4

Max pressure

0.05 Mpa

Solar collector tube

3.3 Borosilicate glass with three target absorber coating

Thickness of glass tube

1.6mm

Vacuum tube tightness

P≤0.005 Pa

Absorption

as=0.93-0.96(AM1.5)

Emission ratio

εh=0.04-0.06(80C±5C)

Idle sunning property parameters

Y=220~260m2.C/KW

Average heat loss coefficient

ULT=0.6~0.7W/(m2.C)

Bracket:

1.5mm thickness Galvanized Steel

Structure of tank:

4 holes for air vent,overflow,water inlet and outlet,electric heater

Welding:

Argon arc welding

Fastening pieces:

Made of stainless steel screw

Absorber area

2.39 m²

Tube quantity

18tube  58x1,800mm

Tank capacity

150L














Same series products in our factory:

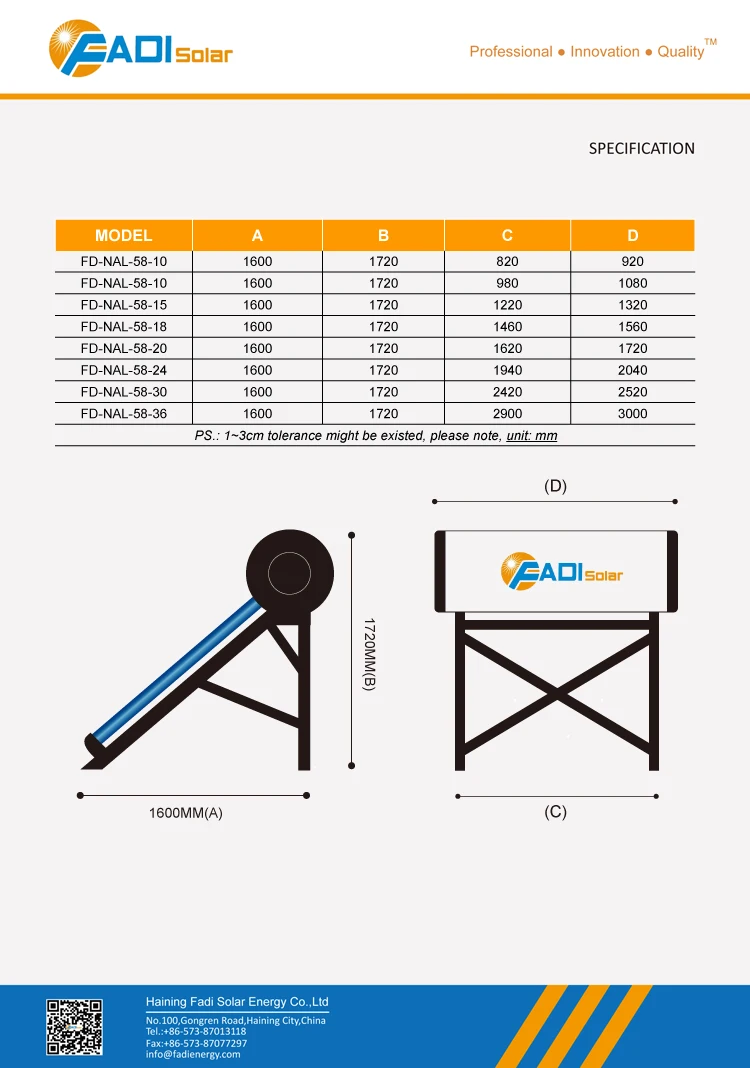

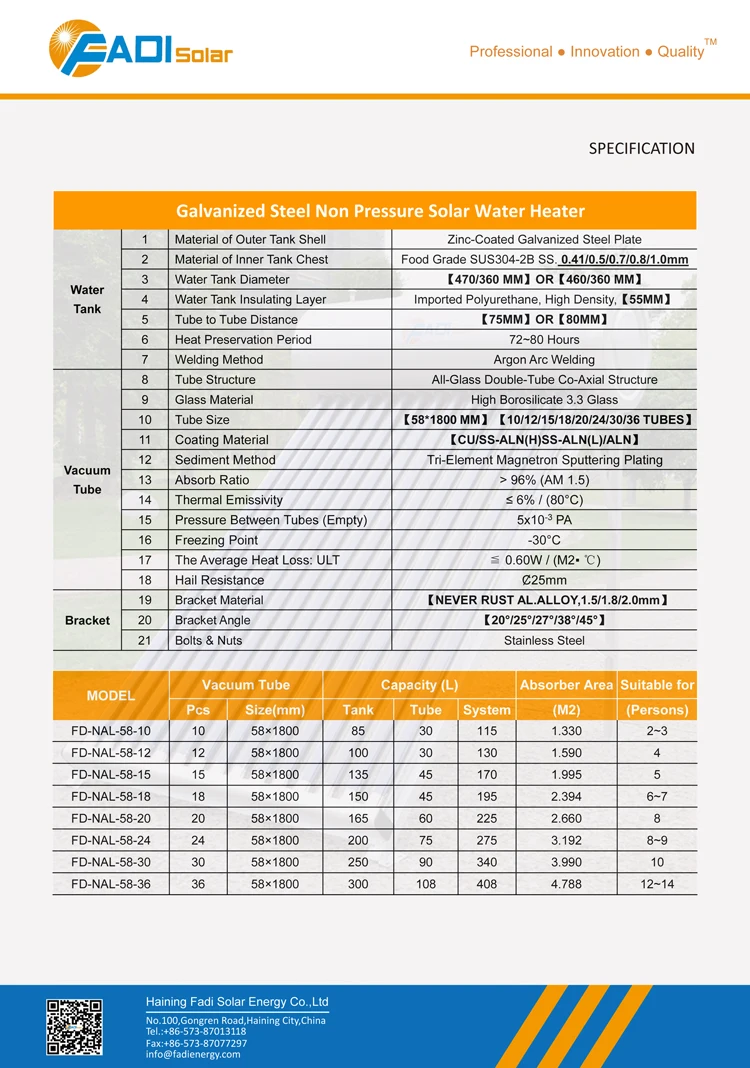

data sheets.jpgsystem diagram new.jpgsystem drawing.jpg

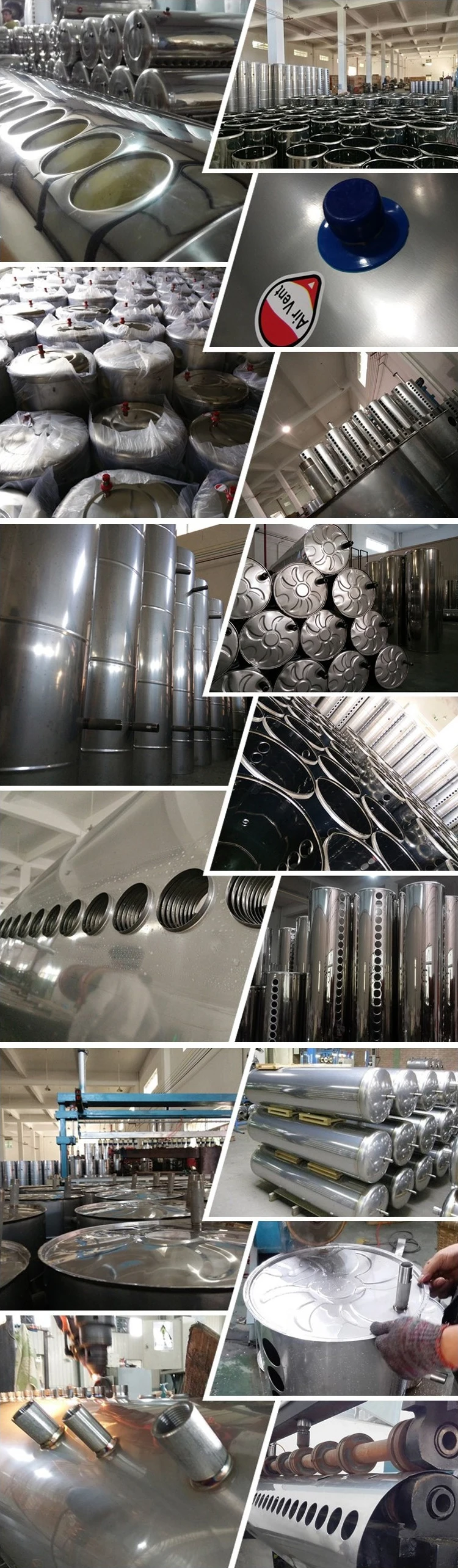

production line.jpg

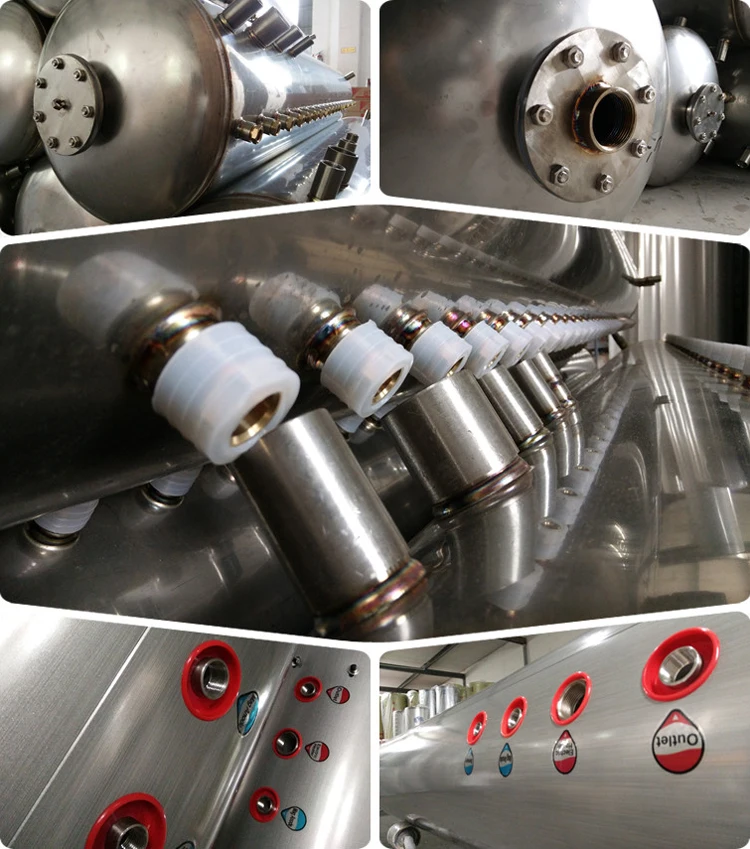

stainless steel solar.jpg
