2016 New Style European EN12975 and SRCC Certified Water Solar Heater (Double Coiler 150L)

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Color Steel
Certification:
CE, SRCC,Keymark
Capacity:
150
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
water solar heater,OEM,FADI
Model Number:
FD-SP2-150
colour:
silver grey
Heat pipe condenser size:
Dia:14mm,14mm; Lenth:7cm
Heat pipe thickness:
0.6mm,0.7mm
Working station voltage:
220V,110V
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box
Port
Shanghai, Ningbo Sea-port
Lead Time :
6-10days

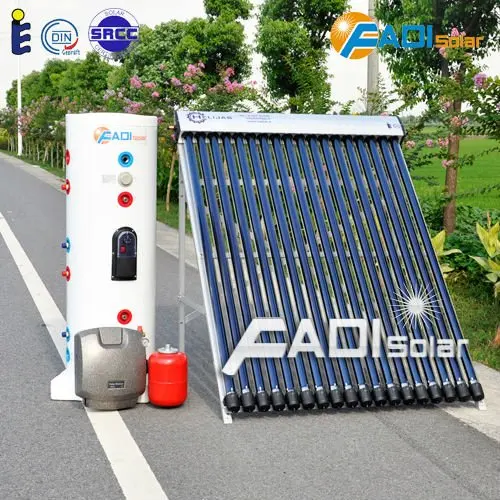

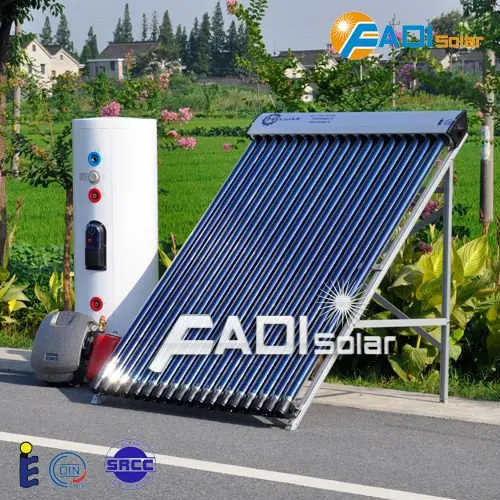

Water solar heater system
Model: FD-SP2-150


Water solar heater features:
1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one
3. The solar collector and the tank of solar water heater is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming

 Water solar heater working principle:
1. The solar collector absorbs solar energy and transmits it to the pressurized solar water heater tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and heat pipe solar water heaters tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically

 Water solar heater pump station components:
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel

Water solar heater specification:

Description
water solar heater
Material of out manifold
0.55mm thickness color steel/ fluorine carbon steel
Material of inner tank
Food grade 2.0 mm thickness SUS304 stainless steel
Tank insulating layer
40mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole
Male G1''
Max pressure
0.6 Mpa
Solar collector tube
3.3 Borosilicate glass with N/Al coating
Thickness of glass tube
1.6mm
Vacuum tube tightness
P≤0.005 Pa
Absorption
as=0.93-0.96(AM1.5)
Emission ratio
εh=0.04-0.06(80C±5C)
Idle sunning property parameters
Y=220~260m2.C/KW
Average heat loss coefficient
ULT=0.6~0.7W/(m2.C)
Bracket:
2.0mm thickness aluminum alloy
Tank weight
52KGS
Tank size
470mm  Dia x 1440mm Height
Tank capacity
150L
Solar collector
1pcs 58x1800x18tube solar collector
Absorber area
1.687m²
Working station
SR882,SR962 working station
Heat exchanger length
Upper:12m,  Underside:18m

Benefits of this kind solar system:
1. Prolong the life of your existing water heater

2.Costs less than an electric, gas or oil water heater

3.No maintenance required

4.Lasts longer than a traditional hot water heater

5.Reduce your water heating costs

6.Reduce your carbon footprint
