En 12975 and srcc certificated heat pipe solar water heaters

FOB Reference Price:Get Latest Price
$158.88 - $1,588.88 / Sets | 1 Set/Sets LARGER QUANTITY,BETTER PRICE (Min. Order)
Report Suspicious Activity
Quick Details
Evacuated Tube
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Housing Material:
Color Steel
CE, SRCC,Keymark
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
heat pipe solar water heaters,OEM,FADI
Model Number:
silver grey
Heat pipe condenser size:
Dia:14mm,24mm; Lenth:7cm,9cm
Heat pipe thickness:
Working station voltage:
Pump station:
single pipe line or double pipe line
Expansion vessel:
5 8 12 18 24 35 50L
Heat exchanger:
copper coils stainless steel...
Supply Ability
Supply Ability:
3200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box
Lead Time :
13 working days

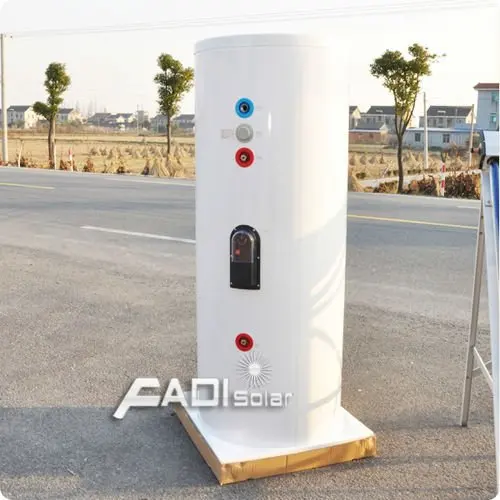

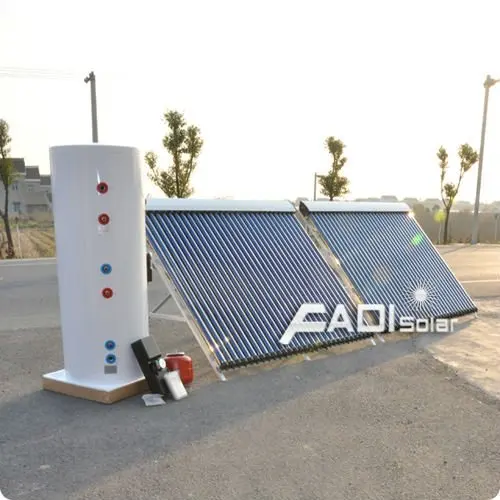

Heat Pipe Solar Water Heaters
Model: FD-SP2-500L
Heat pipe solar water heaters features:
1. The upright tank can make the water temperature to a high level. It can hot the water instantly
2. The tank inside the building, the hot water loses less energy than the normal one
3. The solar collector and the tank of solar water heater is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming
Heat pipe solar water heaters working principle:
1. The solar collector absorbs solar energy and transmits it to the Heat pipe solar water heater tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and heat pipe solar water heaters tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically
Heat pipe solar water heaters working station component:
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel
Heat pipe solar water heaters specification:
Heat pipe solar water heaters
Material of out manifold
0.55mm thickness color steel/ fluorine carbon steel
Material of inner tank
Food grade 2.0 mm thickness SUS304 stainless steel
Tank insulating layer
40mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole
Male G1''
Max pressure
0.6 Mpa
Solar collector tube
3.3 Borosilicate glass with three target absorber coating
Thickness of glass tube
Vacuum tube tightness
P≤0.005 Pa
Emission ratio
Idle sunning property parameters
Average heat loss coefficient
2.0mm thickness aluminum alloy
Tank weight
Tank size
700mm  Dia x 1850mm Height
Tank capacity
Solar collector
2pcs  58x1800x30tube solar collector
Absorber area
Working station
SP106,SP116,SR962 working station
Heat exchanger length
Upper:25m,   Underside:35m
Benefits of this kind heat pipe solar water heaters:
1. Prolong the life of your existing water heater

2.Costs less than an electric, gas or oil water heater

3.No maintenance required

4.Lasts longer than a traditional hot water heater

5.Reduce your water heating costs

6.Reduce your carbon footprint
