Household solar water heater system from (150 liter)

FOB Reference Price:Get Latest Price
$588.69 - $1,506.00 / Sets | 1 Set/Sets LARGER QUANTITY,BETTER PRICE (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Color Steel
Certification:
CE, ISO9001:2000
Capacity:
150
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Solar Water Heater System,OEM,FADI
Model Number:
FD-MSP-150L
Working station:
SP106 SP116 SP328 SR961 SR962... optional
Copper heat pipe:
14 20 22 24mm optional
Bracket:
Automobile paint aluminum alloy stainless steel or galvanized steel
Solar hose:
DN12 DN16 DN20
Heat changer material:
copper coils stainless steel
Supply Ability
Supply Ability:
3000 Set/Sets per Month

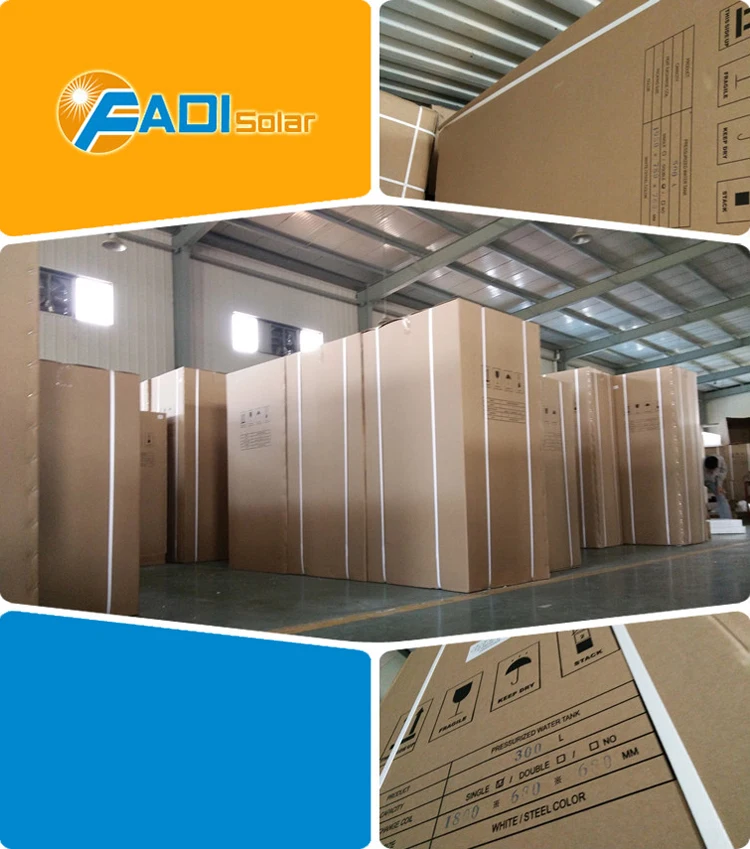

Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box
Port
NINGBO/SHANGHAI
Lead Time :
13 working days

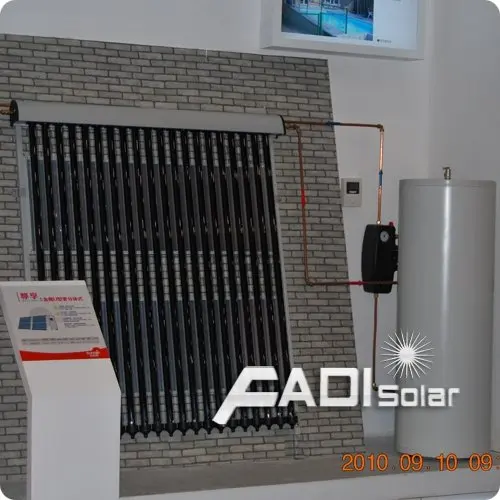

Solar Water Heater System
Model: FD-MSP-150L

Solar water heater system features:
1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one
3. The pressurized solar water heater collector and the water tank is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming

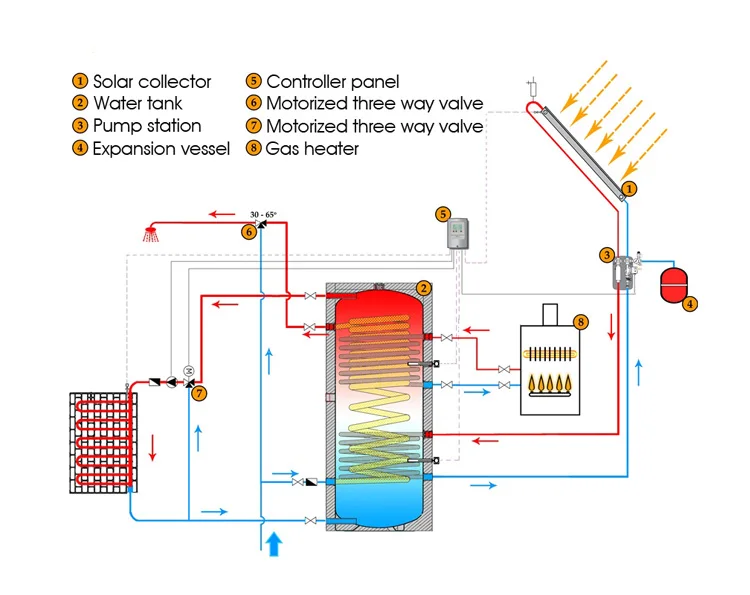

Solar water heater system working principle:
1. The solar collector absorbs solar energy and transmits it to the water tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the solar water heater system tank.
5. When the temperature difference between solar collector and solar water heater system tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically

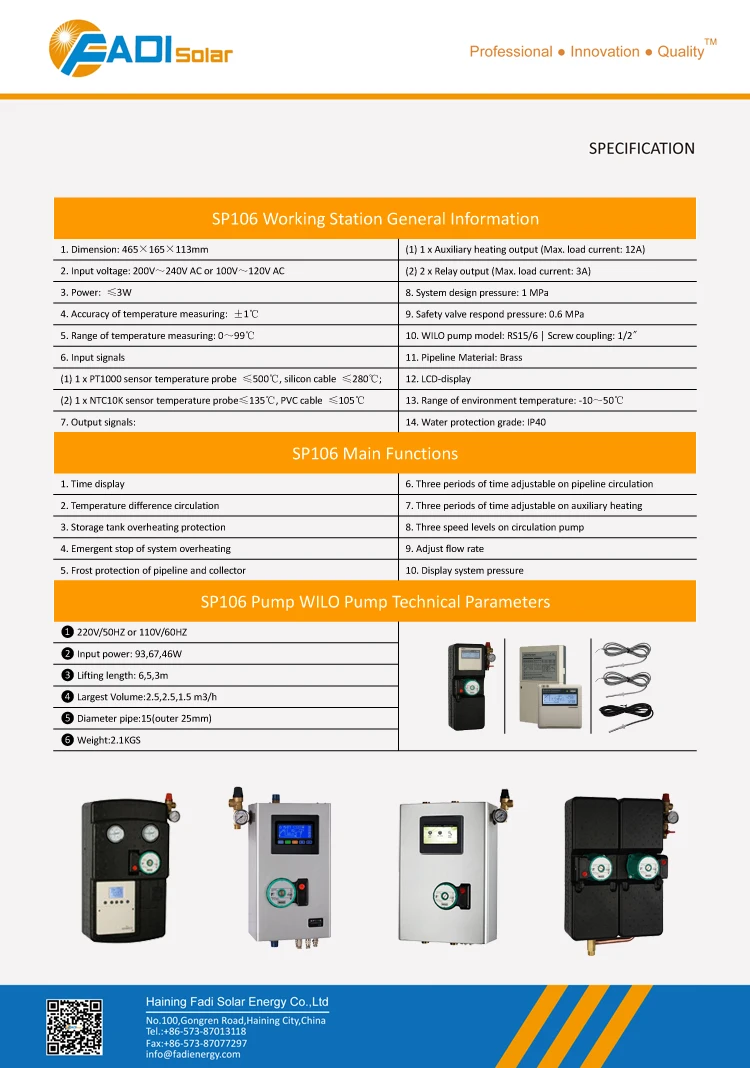

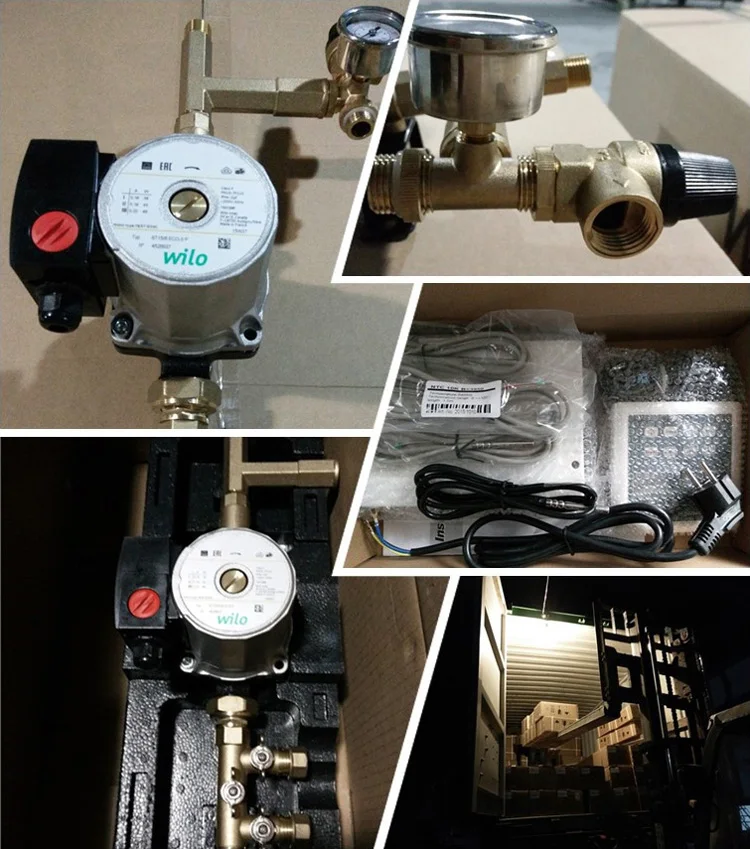

Solar water heater system working station component:
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel: 5L, 8L, 12L, 19L, 20L, 24L
12. Pressure resistance: 10 bar pressure for expansion vessel







                                         Solar water heater system specification:
Description
Solar Water Heater System
Material of out manifold
0.31-0.4mm thickness color steel/ fluorine carbon steel
Material of inner tank
Food grade 1.2-2.0 mm thickness SUS304 stainless steel
Tank insulating layer
40mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole
Male G3/4
Max pressure
0.6 Mpa

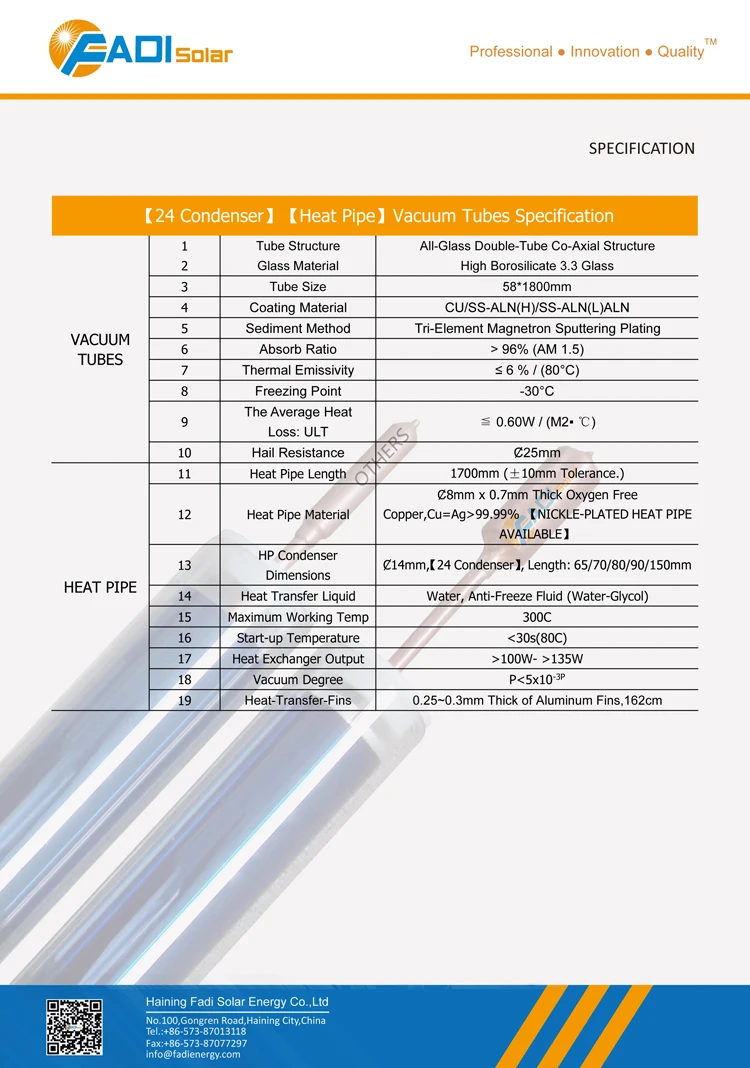

Solar collector tube
3.3 Borosilicate glass with three target absorber coating
Thickness of glass tube
1.6mm
Vacuum tube tightness
P≤0.005 Pa
Absorption
as=0.93-0.96(AM1.5)
Emission ratio
εh=0.04-0.06(80C±5C)
Idle sunning property parameters
Y=220~260m2.C/KW
Average heat loss coefficient
ULT=0.6~0.7W/(m2.C)
Bracket:
2.0mm thickness aluminum alloy
Welding:
Argon arc welding
Fastening pieces:
Made of stainless steel screw
Tank capacity
150L

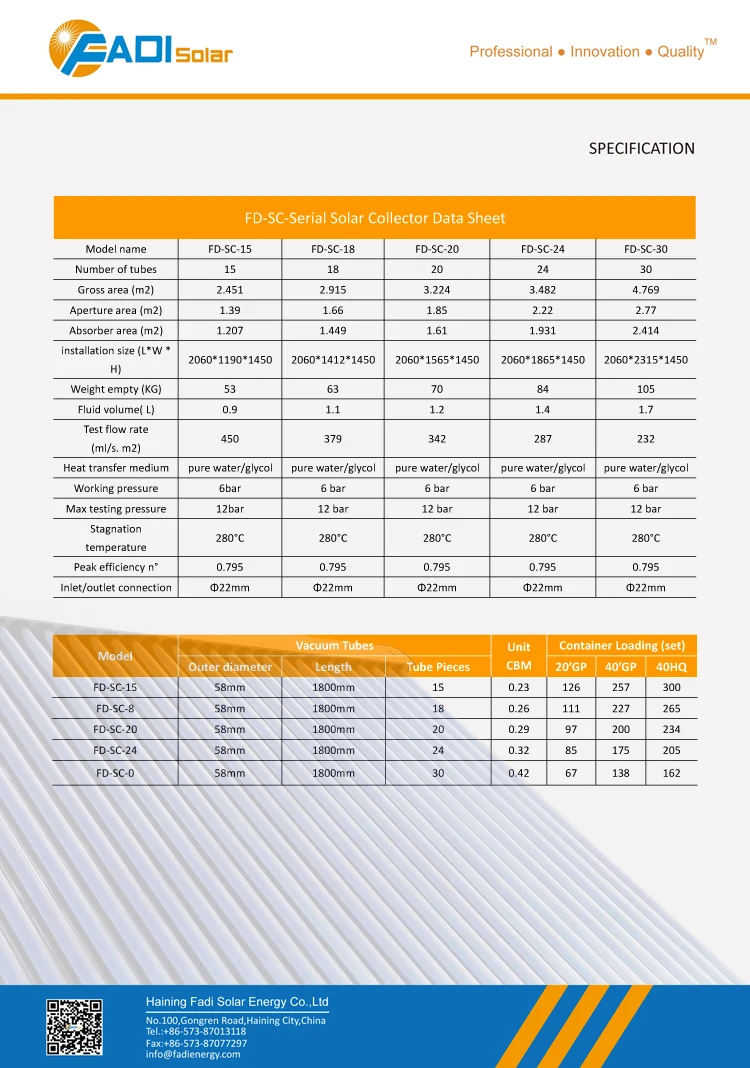

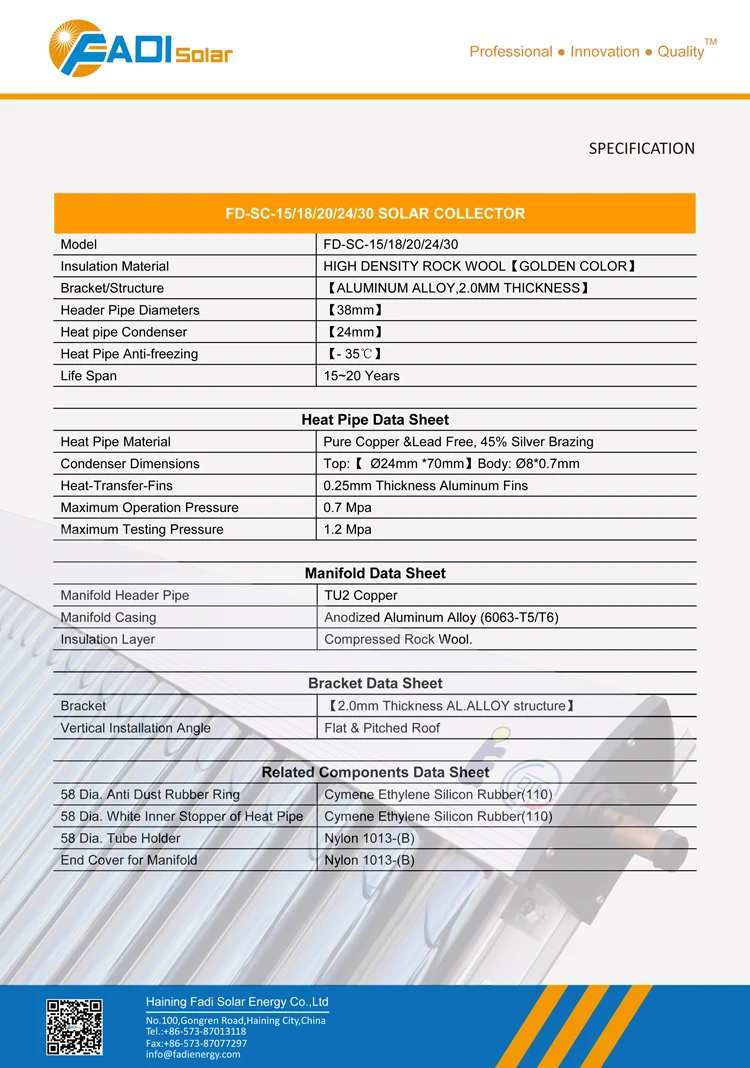

Solar collector
1pcs 58x1800x20tube solar collector
Absorber area
1.875 m²
Working station
SP106, SP116,SR962 working station
Heat exchanger length
15m
