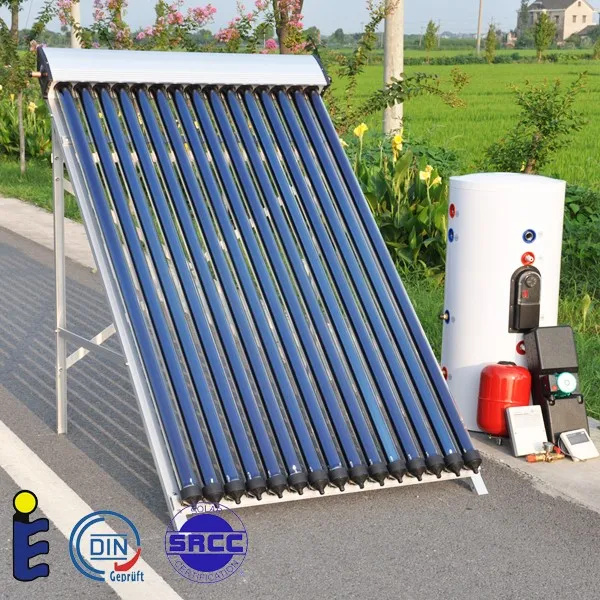

Ce srrc certification Color steel solar water heater (100 Liter)

FOB Reference Price:Get Latest Price
$555.88 - $600.00 / Sets | 1 Set/Sets LARGER QUANTITY,BETTER PRICE (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Color Steel
Certification:
CE, SRCC,Solar Keymark
Capacity:
150
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Solar Water Heater,OEM,FADI
Model Number:
FD-SP-100L
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box
Port
NINGBO/SHANGHAI
Lead Time :
Shipped in 7 days after payment

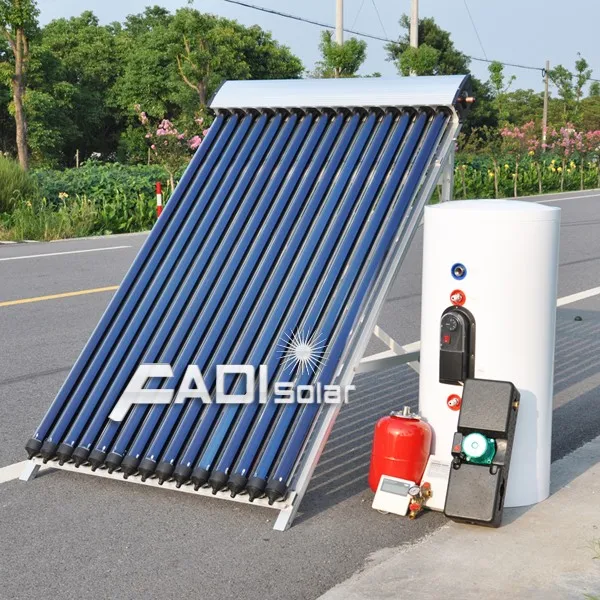

Solar water heaters
Model: FD-SP-100L

Solar water heaters features:
1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one
3. The solar collector and the tank of solar water heater is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming

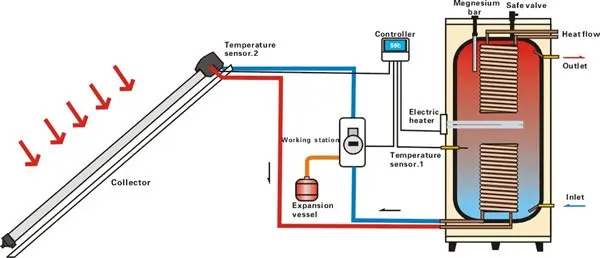

Solar water heaters working principle:
1. The solar collector absorbs solar energy and transmits it to the solar water heater tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and heat pipe solar water heaters tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically

Solar water heaters working station component
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel

Solar water heaters specification:
Description
solar water heaters
Material of out manifold
0.31-0.4mm thickness color steel/ fluorine carbon steel
Material of inner tank
Food grade 1.2-2.0 mm thickness SUS304 stainless steel
Tank insulating layer
40mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole
Male G3/4
Max pressure
0.6 Mpa
Solar collector tube
3.3 Borosilicate glass with N/Al coating
Thickness of glass tube
1.6mm
Vacuum tube tightness
P≤0.005 Pa
Absorption
as=0.93-0.96(AM1.5)
Emission ratio
εh=0.04-0.06(80C±5C)
Idle sunning property parameters
Y=220~260m2.C/KW
Average heat loss coefficient
ULT=0.6~0.7W/(m2.C)
Bracket:
2.0mm thickness aluminum alloy
Welding:
Argon arc welding
Fastening pieces:
Made of stainless steel screw
Tank capacity
100L

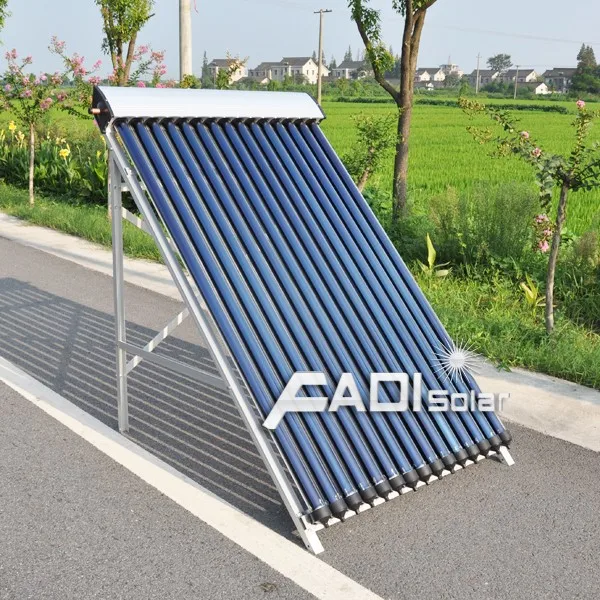

Solar collector
1pcs  58x1800x15tube solar collector
Absorber area
1.406 m²
Working station
SP106, SP116,SR962 solar pump station
Heat exchanger length
12m

Benefits of this kind solar water heaters
1. Prolong the life of your existing water heater

2.Costs less than an electric, gas or oil water heater

3.No maintenance required

4.Lasts longer than a traditional hot water heater

5.Reduce your water heating costs

6.Reduce your carbon footprint



Heat pipe technical data

Item

Measured value

Heat conduction coefficient

>99%

Axial heat transition auantity

0.93-2.49kw/cm²

Heat conduction speed

>200mm/s

Axial temperature difference

1-2centi-degree/m

Starting temperature

20centi-degree

Starting speed

2min

Working temperature range

30centi-degree~300centi-degree

Resistance to high temperature

No deformation in 48hours under 250C high temp condition

Resistance to low temperature

-35C

Life

>10years
