Swimming pool heating heat pipe solar collector for promotion

FOB Reference Price:Get Latest Price
US $121.5-388.8 / Sets | 1 Set/Sets (Min. Order)
Type:
Pressurized
Application:
Solar Thermal
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FADI / OEM
Model Number:
FD-SC-18
Pipe Material:
Glass
Heat pipe condenser:
14 20 22 24 optional
Color:
Black silver grey milk white...
Supply Ability
Supply Ability:
3000 Set/Sets per Month heat pipe solar collector
Packaging & Delivery
Packaging Details
Manifold packing dimension: 2000*200*160mm 1CTN
18pcs tube packing dimension: 1930*260*265mm 2CTNS
Container loading quantity:
111units/20GP container
227units/40GP container
265units/40HQ container
Port
SHANGHAI, NINGBO, GUANGZHOU

Solar Collector Details

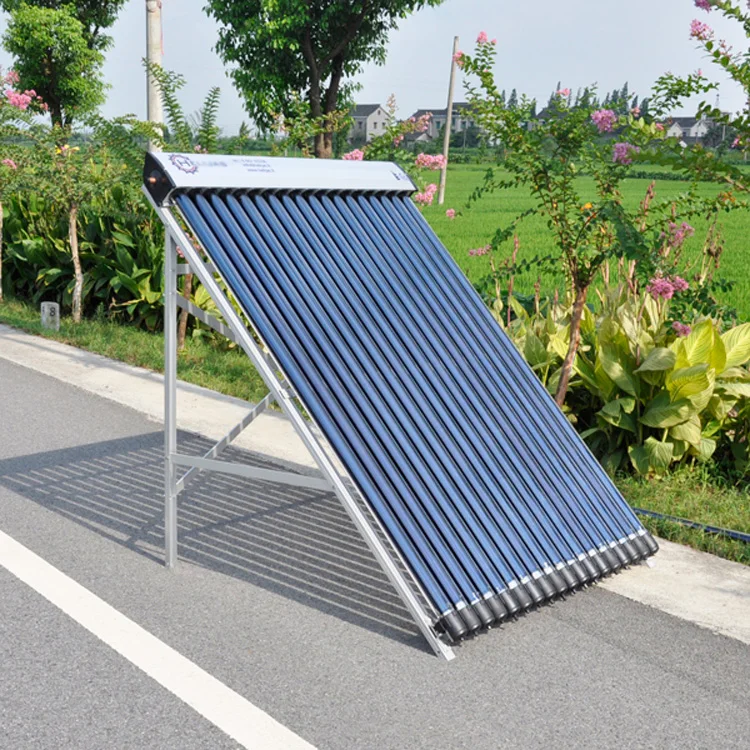

Model:FD-SC-18

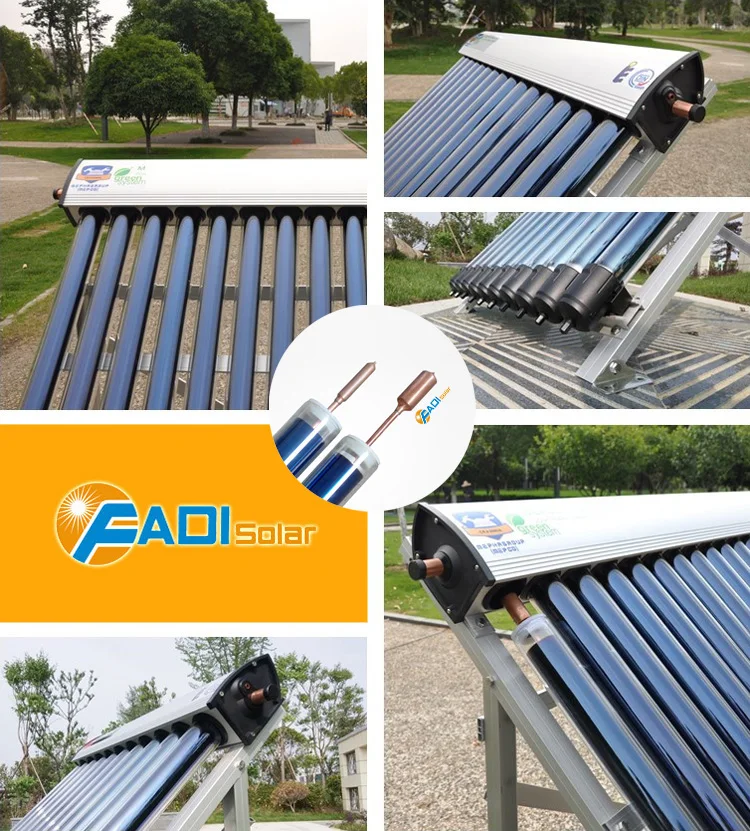

Solar collector working principle



1. The heat pipe series pressurized solar collector are always connected with existing heating supply device.

2. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminum fins.

3. The liquid in the heat pipe changes into vapour which rises to the condenser.

4. The heat then passes through the heat exchanger and the vapour becomes liquid, returning to the base of the heat pipe.

5. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe.

6. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.





Solar collector specification


1. Manifold (interior): 0.8mm thickness Red copper

2. Manifold (exterior): 2. Mm thickness Aluminum alloy
3. Glass tube dimensions: 58mm x 1.800mm / 47mm x 1.500mm
4. Insulation layer: 45mm thickness glass fiber/polyurethane layer
5. Heat preservation: 72-96hrs
6. Hail resistance: 25mm
7. Max pressure: 6 bar
8. Coating of vacuum tube: Ss-c/cu
9. Frame: 2.0mm thickness Aluminum Alloy

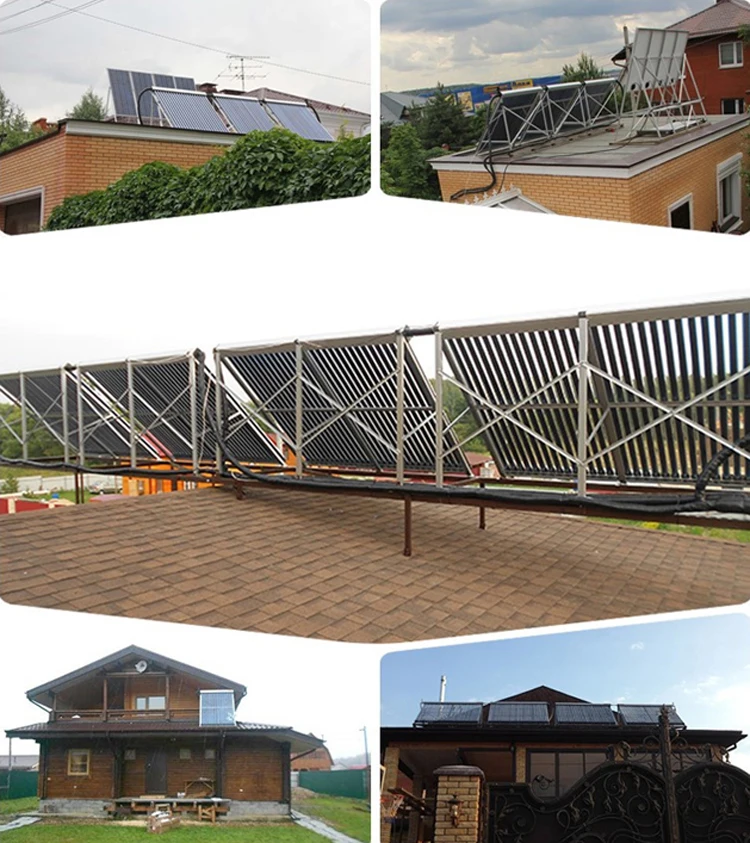

Solar collector applications
1. Hotels, resorts, hospitals and hostels

2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)



Solar collectors material specification:
Flow typeHeat pipe
Heat pipe materialTU1 copper
Heat pipe sizeTop: Ø14* 1mm;  Body: Ø8* 0.6mm thickness
Tube diameterφ58/1800mm
Solar vacuum glass tubeHigh boron-silicon
Coating of absorber on glass tube

Cu/SS-ALN(H)/SS-ALN (L)/ALN

copper,Stainless steel
fins around heat pipesingle long Aluminum(1.68m)
Manifold pipe materialTU1 copper (Ø35x0.8mm)
Manifold casing materialAluminum alloy(2.0mm)
Insulation material in manifold casingGlass fiber
Thickness of insulation(mm)45
Density of insulation (kg/m3)90
Frame materialAluminum alloy frame  (2.0mm thickness)
Sealing MaterialsEPDM
Pressurized solar collector technical data:
Model name FD-SC-18
Number of tubes18
Gross area (m2)2.915
Aperture area (m2)1.66
Absorber area (m2)1.449
installation size (L*W * H)2060*1412*1450
Weight empty (KG)63
Fluid volume( L)1.1
Test flow rate (ml/s. m2)379
Heat transfer mediumpure water/glycol
Working pressure6 bar
Max testing pressure12 bar
Stagnation temperature280°C
Peak efficiency n°0.795
Solar transmittance93%
Solar Absorptance93%
Hemispherical emittance6.5%
Inlet/outlet connectionΦ22mm
Manifold packing mm1*2000*200*160
Tubes packing mm2*1930*260*240





Fadi Solar business terms and conditions:



1.Warranty: 10years for complete solar wate heater

2.Delivery time:

   Sample order: 7-10days

   1-2 *40HQ: in 15days

   2-5 *40HQ: in 20day

3.Payment term: T/T,L/C,ESCROW,Paypal,E-credit line,Wstern union

4. Installation training and guidance for free(we have a very professional and experienced interational installation team)
