High efficiency vacuum tube solar water heater system

FOB Reference Price:Get Latest Price
US $98.88-232.58 / Set | 1 Set/Sets vacuum tube solar water heater (Min. Order)
Supply Ability:
6000 Set/Sets per Month vacuum tube solar water heater
Port:
SHANGHAI, NINGBO, GZ.
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Wall Mounted
Housing Material:
Stainless Steel
Certification:
CE, ISO 9001:2000
Capacity:
135
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Vacuum Tube Solar Water Heater,FADI or OEM
Model Number:
FD-NPB58-15
colour:
silver white
Item:
Silver Color Solar Water Heater
Packaging & Delivery
Packaging Details
standard carton box or as customer's requirements
Delivery Time
6~10 days

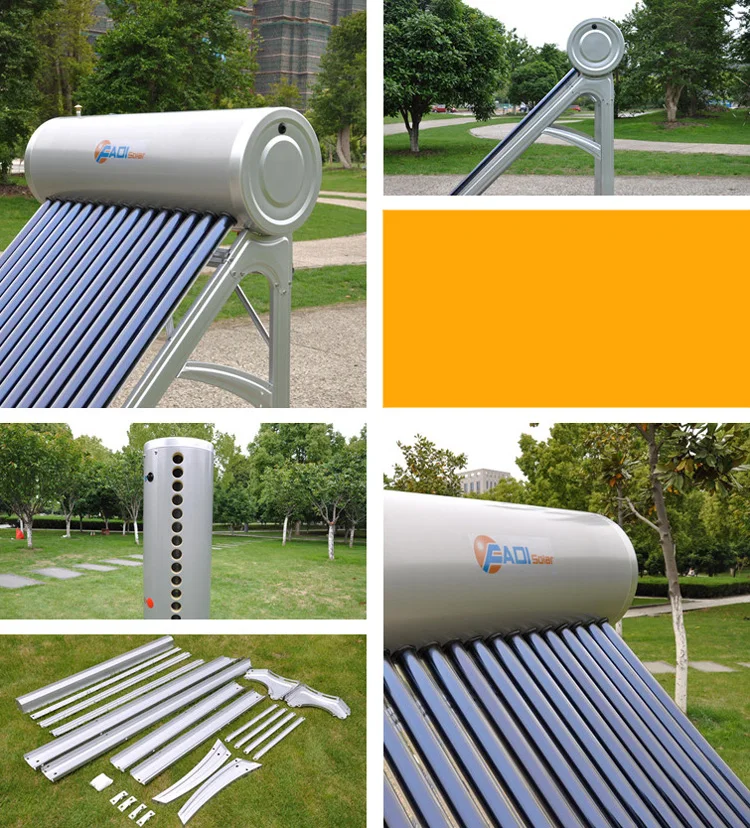

Vacuum Tube Solar Water Heater details:

Model:FD-NPB58-15



How Vacuum Tube Solar Water Heater works
1.Solar water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes
4. Through this circulation, the cold water in the water tank will be gradually heated.



Vacuum Tube Solar Water Heater features
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

Vacuum Tube Solar Water Heater optional accessories
1. Controller
2. Electrical heater: 1.5/2/2.5kw

3.Magnesium anode



Vacuum Tube Solar Water Heater material specification:

 Description

 FD-NPB15-135L Vacuum Tube Solar Water Heater

 Material of out tank

 Food grade 0.4mm SUS304/SUS202 stainless steel

 Material of inner tank

 0.4mm thickness SUS304 stainless steel

 Tank insulating layer

 55mm 45kg/m³ high-density polyurethane foamed

 Inlet and outlet hole

 Male G 1/2, 3/4

 Max pressure

 0.05 Mpa

 Solar collector tube

 3.3 Borosilicate glass with N/Al coating

 Thickness of glass tube

 1.6mm

 Vacuum tube tightness

 P≤0.005 Pa

 Absorption

 as=0.93-0.96(AM1.5)

 Emission ratio

 εh=0.04-0.06(80C±5C)

 Idle sunning property parameters

 Y =220~260m2.C/KW

 Average heat loss coefficient

 ULT=0.6~0.7W/(m2.C)

 Bracket:

 1.5mm thickness galvanized steel

 Structure of tank:

 5 holes for air vent,overflow,water inlet and outlet,electric heater

 Welding:

 Argon arc welding

 Fastening pieces:

 Made of stainless steel screw

 Absorber area

 1.995m²

 Tube quantity

 15 tube  58x1800mm

 Tank capacity

 135L

 Afford for house

 3-4persons
