China fadi heat pipe solar collector (4pcs x15tube)

FOB Reference Price:Get Latest Price
US $212-217 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
heat pipe solar collectors,FADI,OEM
Model Number:
FD-SC-15
Type:
Pressurized
Application:
Solar Thermal
Pipe Material:
Glass
Supply Ability
Supply Ability:
3600 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export carton with foam or wooden box
Port
Shanghai,Ningbo Sea-port
Lead Time :
6-10days

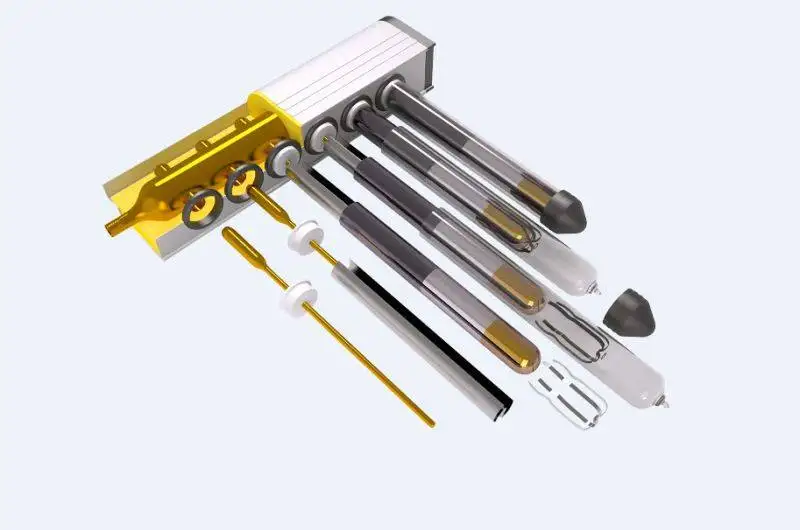

Heat Pipe Solar Collector details

Model:FD-SC-15 (4pcs)





let the sun pay.jpg





 Heat Pipe Solar Collector working principle:

1. The heat pipe series  solarkollektor are always connected with existing heating supply device.

2. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminium fins.

3. The liquid in the heat pipe changes into vapour which rises to the condenser.

4. The heat then passes through the heat exchanger and the vapour becomes liquid, returning to the base of the heat pipe.

5. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe.

6. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.





working principles.jpg





 Heat Pipe Solar Collector specification
1. Manifold (interior): 0.8mm thickness Red copper
2. Manifold (exterior): 2.0mm thickness Aluminum alloy
3. Glass tube dimensions: 58mm x 1.800mm
4. Insulation layer: 45mm thickness glass firber /polyurethane layer
5. Heat preservation: 72-96hrs
6. Hail resistance: 25mm
7. Max pressure: 6 bar
8. Coating of vacuum tube: Ss-c/cu
9. Frame: 2.0mm thickness Aluminum Alloy

Heat Pipe Solar Collector applications:
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)





Heat Pipe Solar Collector material specification
Flow typeHeat pipe
Heat pipe materialTU1 copper
Heat pipe sizeTop: Ø14* 1mm; Body: Ø8* 0.6mm thickness
Tube diameterφ58/1800mm
Solar vaccum glass tubeHigh boron-silicon
Coating of absorber on glass tubeAl-N-Al,Copper,Stainless steel
fins around heat pipesingle long Aluminum(1.68m)
Manifold pipe materialTU1 copper (Ø35x0.8mm)
Manifold casing materialAluminum alloy(2.0mm)
Insulation material in manifold casingGlass fiber
Thickness of insulation(mm)45
Density of insulation (kg/m3)90
Frame materialAluminum alloy frame(2.0mm)
Sealing MaterialsEPDM
Heat Pipe Solar Collector technical data
Model nameFD-SC-15
Number of tubes15 x4pcs
Gross area (m2)2.451 x4pcs
Aperture area (m2)1.39 x4pcs
Absorber area (m2)1.207 x4pcs
installation size (L*W * H)2060*1190*1450 x4pcs
Weight empty (KG)53 x4pcs
Fluid volume( L)0.9 x4pcs
Test flow rate (ml/s. m2)450 x4pcs
Heat transfer mediumpure water/glycol
Working pressure6 bar
Max testing pressure12 bar
Stagnation temperature280°C
Peak efficiency n°0.795
Solar transmittance93%
Solar Absorptance93%
Hemispherical emittance6.5%
Inlet/outlet connectionΦ22mm
Manifold packing mm1*2000*200*160mm
Tubes packing mm1*1930*335*240mm
FD-SC-15 Highest power output per collector: 927W    G=1000W/m2

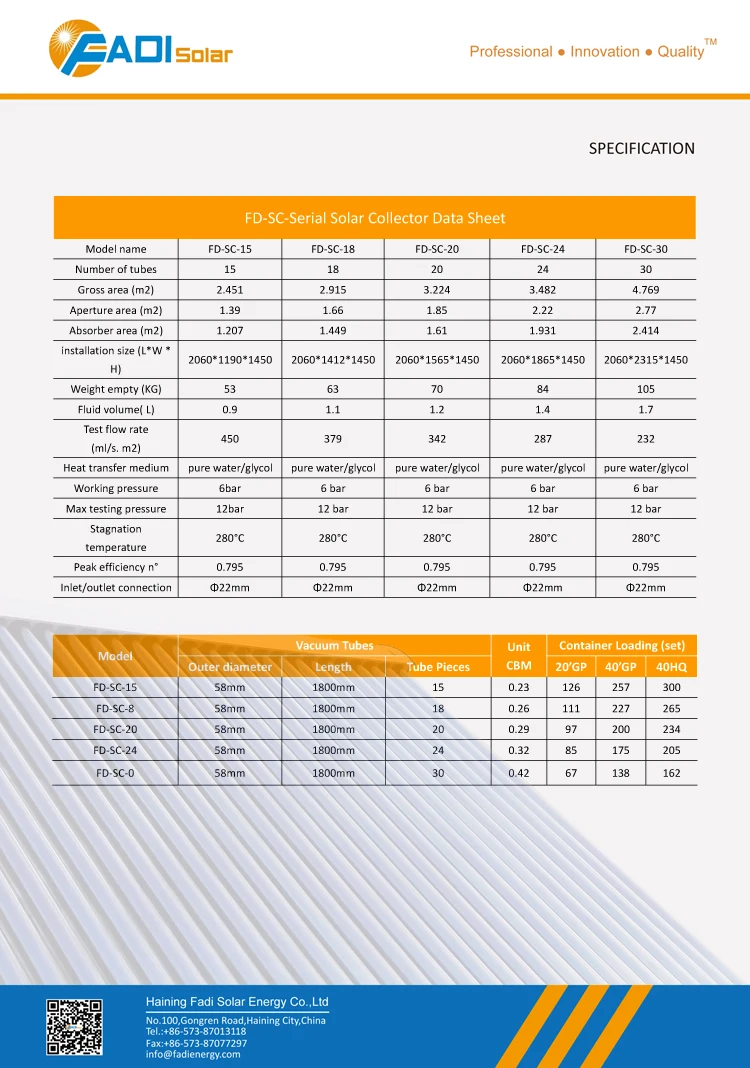

15 18 20 24 30 data.jpgcollector specification.jpg



FADI prime collector.jpgHEAT PIPE ORIGINAL.jpgSOLAR COLLECTOR NEW.jpgPICTURES - fadi collector.jpg



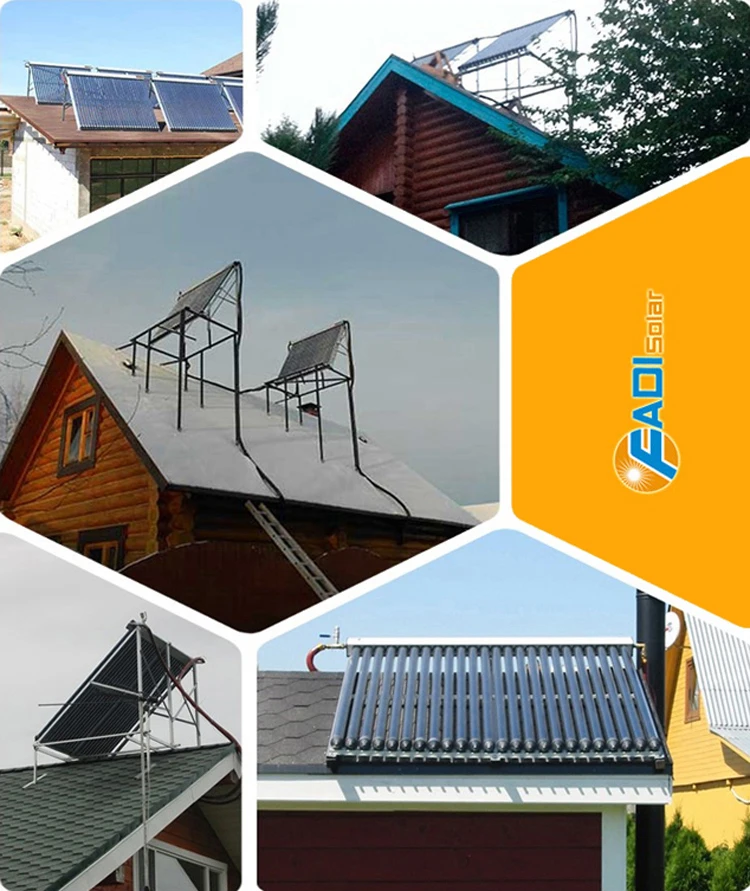

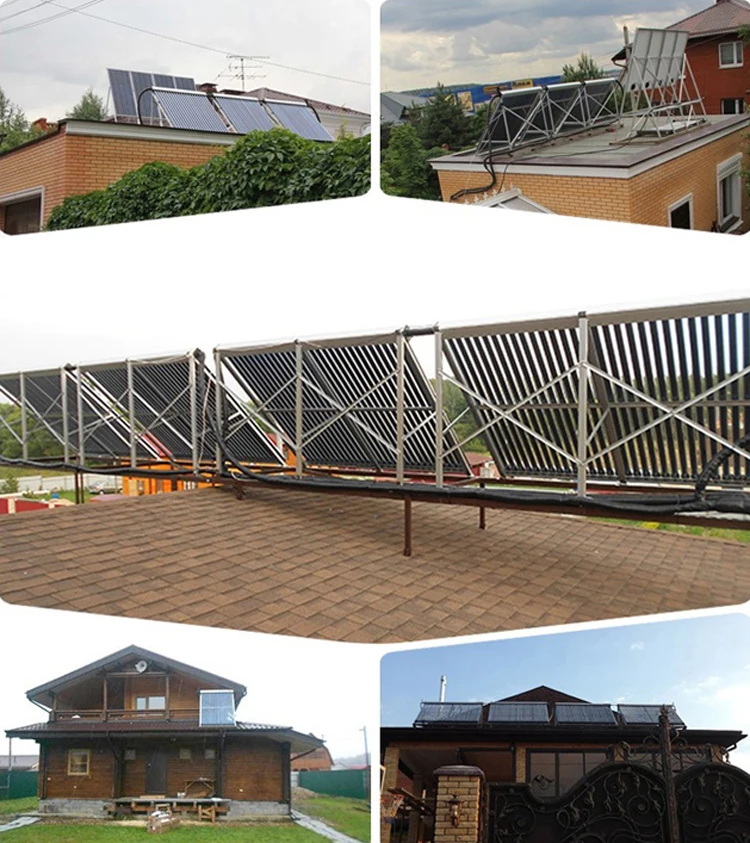

PICTURES - fadi solar.jpg



solar collector hp show3.jpg

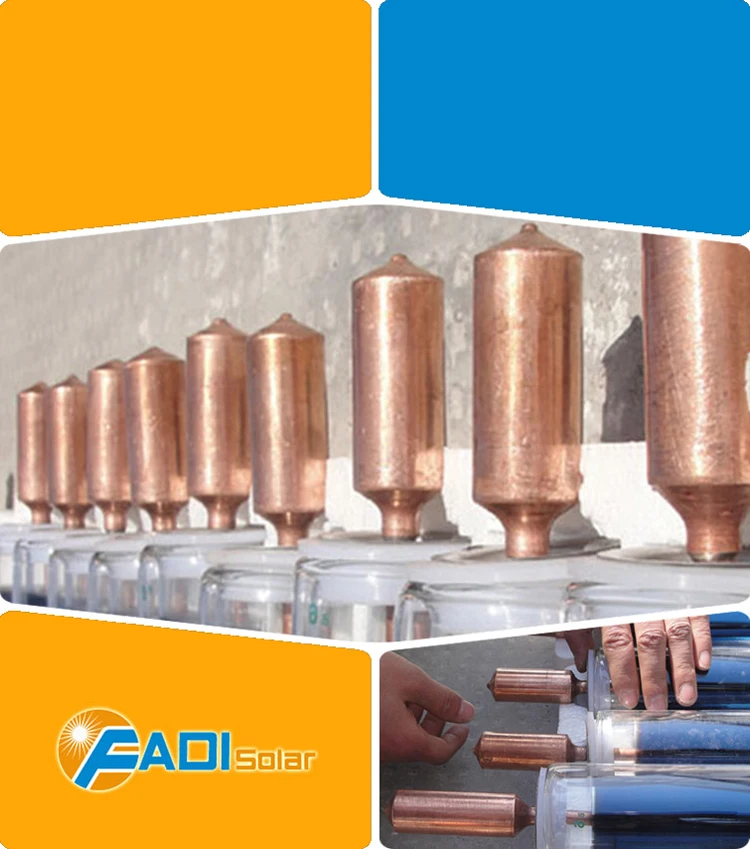

24mm heat pipe consenser.jpg



hp solar collector.jpg



pressurized solar system.jpg



fadi certificates new.jpg
