Quick Details

  • Type: Evacuated Tube
  • Pressure: Unpressurized
  • Circulation Type: Direct / Open Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: Galvanized Steel
  • Certification: CE, ISO9001:2000
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Solar Water Heater Project,OEM,FADI
  • Model Number: FD-NPC58-12500L

Packaging & Delivery

Packaging Details Standard export carton with foam or wooden box
Delivery Time 6-10days

Solar water hater project for 10tons hotel hot water details:
Model: FD-NPC58-11500L


Solar water heater project features

1. Temperature conservation layer in chest
2. Economical and practical
3. Environmental conservation and energy saving
4. According to the required configuration, it can be divided into two types, one is vertical and the other is horizontal



Solar water heater project applications
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)





Non-pressure solar collector material specification

Descripition

Solar water heater project

Material of out manifold

0.4mm thickness color steel/ fluorine carbon steel

Material of inner tank

Food grade 0.4mm thickness SUS304 stainless steel

Tank insulating layer

40mm 45kg/m³ high-density polyurethane foamed

Inlet and outlet hole

Male G3/4

Max pressure

0.05 Mpa

Solar collector tube

3.3 Borosilicate glass with N/Al coating

Thickness of glass tube

1.6mm

Vacuum tube tightness

P≤0.005 Pa

Absorption

as=0.93-0.96(AM1.5)

Emission ratio

εh=0.04-0.06(80C±5C)

Idle sunning property parameters

Y=220~260m2.C/KW

Average heat loss coefficient

ULT=0.6~0.7W/(m2.C)

Bracket:

1.5mm thickness Galvanized Steel

Welding:

Argon arc welding

Project size

5pcs x 2300L solar project

Absorber area

112.44m²

Tube quantity

1200tubes  (60pcs 58x1,800mmx20 tube collector)

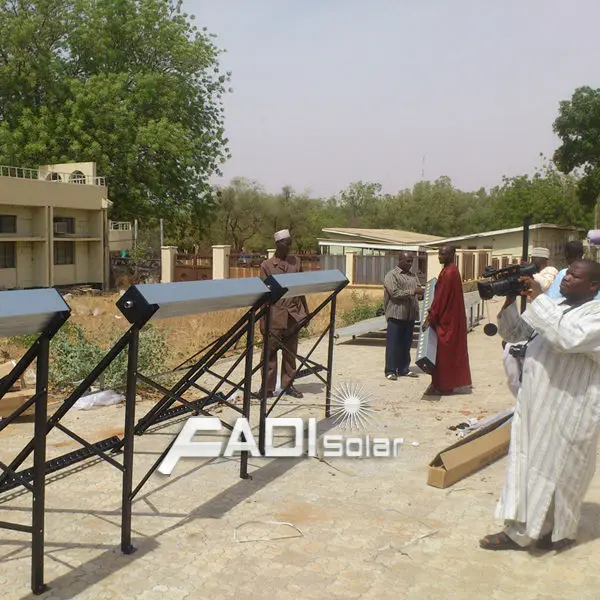

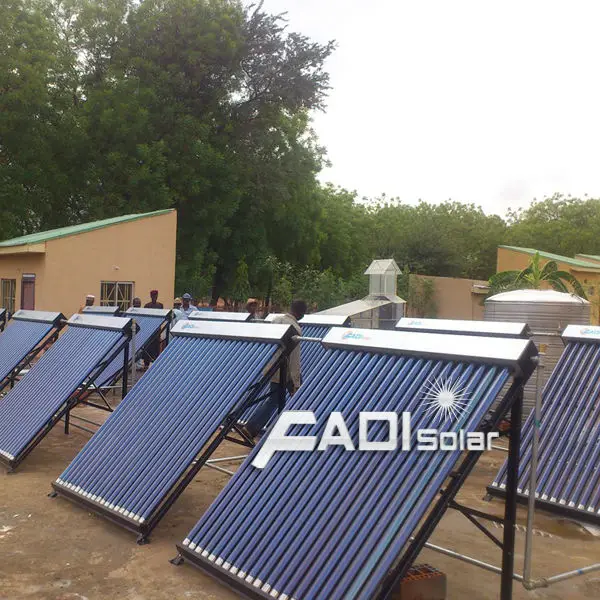

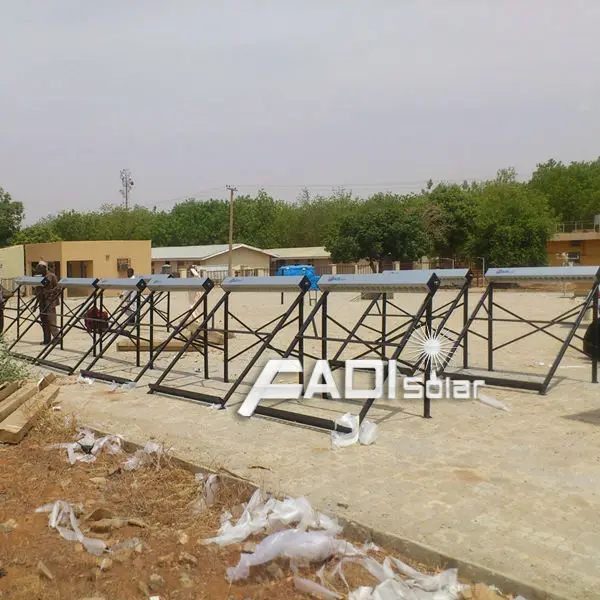

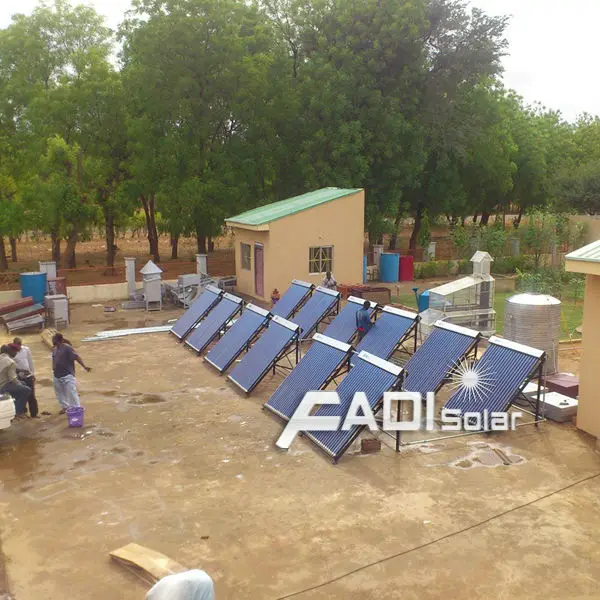

Solar water heater project details:

The sponsor: The World Bank

Supplier: Fadi Solar


Location:  suburbs of Abujia,Nigeria

Collector:60pcs x 20tube solar collector

.5pcs x 2300L storage tank

.Installation schedule:

First 2300L: April 18th to 21th

Second 2300L: April 25th to 27th

Third 2300L: April 30th to May 2nd

Forth 2300L:May 5th to May 7th

Fifth 2300L: May 9th to May 11th
